Device-to-Device (D2D) Communication with Eavesdropping Risks in Cellular Networks

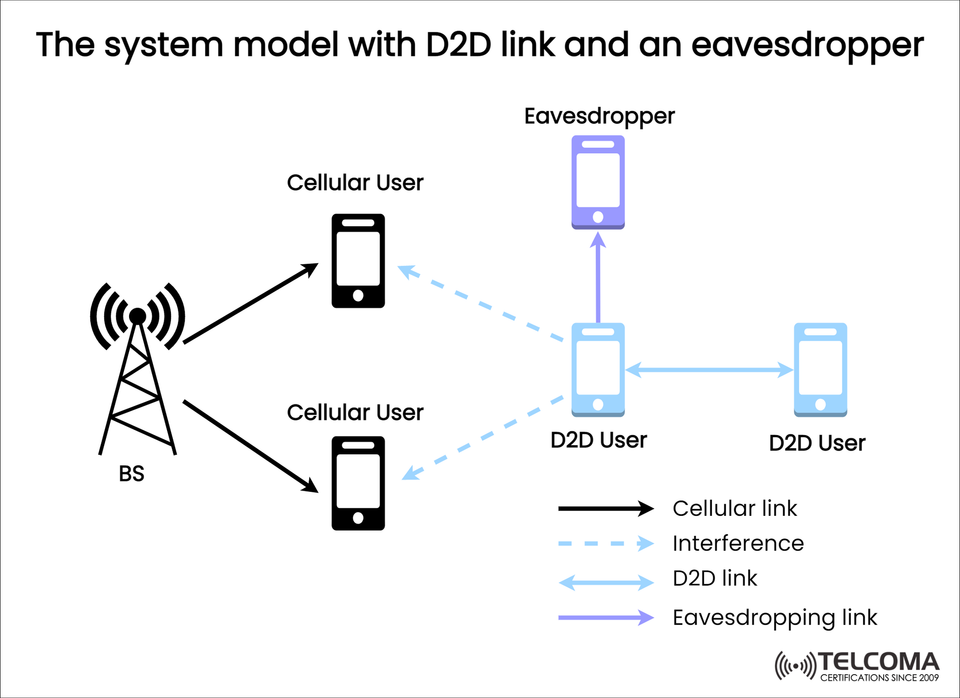

The System Model with D2D Link and an Eavesdropper

As we move towards 5G and beyond, Device-to-Device (D2D) communication is becoming a key player in delivering high-speed, low-latency, and efficient connectivity. With D2D, mobile devices can talk directly to each other without sending data through the base station (BS), which helps to cut down on latency and lessen the load on the network.

But this direct communication also brings new security and interference concerns. The diagram shows a system model where cellular users, D2D users, and an eavesdropper operate within the same network space.

Key Components in the Model

Base Station (BS): * Connects with cellular users using regular cellular links. * Takes care of spectrum allocation for both cellular and D2D users.

Cellular Users (Black Icons): * Use standard cellular links to communicate with the BS. * Might encounter interference from nearby D2D signals.

D2D Users (Blue Icons): * Share data directly without involving the BS. * Enjoy lower latency and less network congestion. * However, their signals can clash with cellular spectrum, causing interference.

Eavesdropper (Purple Icon): * A malicious entity trying to intercept communication between D2D users. * Represents a serious security risk by taking advantage of open D2D channels.

Types of Links in the Model

The diagram depicts various link types, each with its own characteristics and challenges:

Cellular Link (Black Arrows): The traditional communication path between BS and cellular users.

D2D Link (Blue Double Arrows): Direct communication between D2D users.

Interference Link (Dashed Blue Arrows): Crosstalk between cellular users and D2D signals, leading to performance issues.

Eavesdropping Link (Purple Arrow): Unauthorized interception attempt by the eavesdropper.

How D2D Communication Works

Step 1: Spectrum Sharing

D2D users make use of the licensed spectrum that’s meant for cellular users.

This improves the efficiency of spectrum use but creates interference issues.

Step 2: Direct Transmission

Data is transferred directly between two D2D users without going through the BS.

This speeds up the process and is especially useful in public safety communications, vehicular networks, and location-based services.

Step 3: Security Vulnerability

Since D2D transmissions might skip core network-level security, they're at risk from eavesdroppers.

Data intercepted can be sensitive, so securing D2D is a top priority.

Security Challenges with D2D and Eavesdroppers

D2D offers flexibility but also decreases the control that cellular networks usually have. Here are the main risks:

Eavesdropping Attacks: Eavesdroppers take advantage of open communication between D2D users to grab sensitive data.

Interference Issues: Cellular users could see their quality of service drop when D2D signals overlap.

Unauthorized Access: Malicious D2D devices might connect to the network without proper validation.

Weak Encryption: If D2D links depend on light encryption, it may be easier for someone to break in compared to standard cellular encryption.

Mitigation Techniques

To secure D2D links and fend off eavesdropping, several strategies can be used:

Physical Layer Security: * Utilize channel randomness to block unauthorized access. * Methods like injecting artificial noise can confuse eavesdroppers.

Key Management: * Implement BS-assisted key distribution for D2D pairs. * Regular key refreshes ensure that intercepted keys become useless quickly.

Power Control & Interference Management: * Tweak transmission power of D2D users to lessen interference with cellular links. * Make sure only intended recipients can decode the messages.

Beamforming & Directional Transmission: * Direct transmission towards specific D2D users limits leakage to eavesdroppers.

Benefits of D2D Communication (Despite Risks)

Although there are security concerns, the advantages of D2D communication are crucial in modern networks:

Latency Reduction: Direct communication cuts out routing delays.

Spectrum Efficiency: Makes intelligent use of licensed spectrum.

Offloading BS Traffic: Helps reduce congestion in the core network.

Energy Efficiency: Short-range communication uses less power.

D2D in 5G and Beyond

D2D communication is at the heart of 5G use cases like:

V2X (Vehicle-to-Everything): Cars talk to each other for safety purposes.

Public Safety Networks: First responders can share data without relying on infrastructure.

IoT Networks: Devices can efficiently exchange local data without overloading the BS.

In 6G, D2D will expand further with:

AI-driven Secure D2D Links that can detect and neutralize eavesdroppers.

Blockchain for Authentication ensuring only trusted devices interact with each other.

Quantum-Resistant Encryption for secure D2D links in the future.

Comparative Overview

Aspect Cellular LinkD2D Link Eavesdropping Risk Latency Higher (via BS)Lower (direct)Medium (depends on encryption)Efficiency Less spectrum reuse High spectrum reuse Exploitable Security Strong (network-level)Weaker (local link)High risk without safeguards Use Cases General communication IoT, V2X, Public Safety Malicious exploitation

Future Research Directions

Telecom researchers are diving into ways to secure D2D communication, with key focus areas such as:

Machine Learning for Intrusion Detection: Spotting eavesdroppers in real time.

Cross-Layer Security: Merging protections across physical, MAC, and application layers.

Privacy-Preserving Protocols: Keeping user identities anonymous in D2D networks.

Adaptive Spectrum Sharing: Dynamically balancing cellular and D2D user needs to cut down on interference.

Your Go-To Guide on 5G Security, Resource Management, and D2D Communication

5G wireless tech is shaking up the telecom world, making way for super-reliable, low-latency communication, connecting tons of IoT devices and boosting broadband speeds. However, with all the complexities of 5G systems, we’re also facing new challenges related to performance and security.

This guide dives into three key parts of 5G systems:

The security framework of 5G networks

The resource management strategy for optimizing spectrum use

The Device-to-Device (D2D) communication model that includes an eavesdropper

By getting a grip on these components, telecom professionals will be in a better position to secure, optimize, and roll out next-gen wireless networks.

Conclusion

The system model featuring D2D links and an eavesdropper showcases both the potential and risks in next-gen networks. While D2D communication boosts efficiency, latency, and spectrum usage, it also opens up new attack surfaces for those with malicious intent.

For telecom experts, the challenge is to strike a balance between the performance benefits of D2D and strong security measures—from physical layer defenses to AI-powered anomaly detection. As 5G and 6G evolve, ensuring the security of D2D communication will be vital for maintaining trust and reliability in connected environments.
