E2E Delay Segmentation in 5G Networks: Access, Core, and CDN Explained
Introduction
5G technology is set to bring ultra-low latency, high bandwidth, and smooth connectivity. But to really hit those performance targets, it all comes down to how we manage end-to-end (E2E) delay throughout different parts of the network.

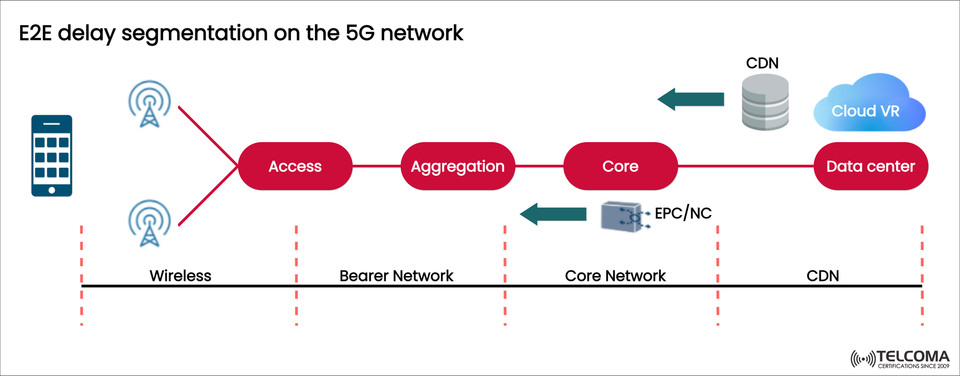

The image above breaks down E2E delay in a 5G network into crucial phases like the wireless, bearer network, core network, and CDN layers. Each of these layers impacts the user experience – whether you’re streaming a video, gaming in the cloud, or diving into cloud VR apps.
In this blog, we’ll explore how delay segmentation operates within 5G networks. We’ll cover every stage from the mobile device to the data center and discuss why it’s important for operators, businesses, and users.
What is E2E Delay in 5G?
End-to-end (E2E) delay is the time it takes for data to travel from a user device (think smartphone or VR headset) to an application server (like a data center or a cloud VR service) and back again.
For 5G, we’re aiming for target latency that can be as low as 1 millisecond for ultra-reliable low-latency communication (URLLC) apps. To achieve that, we need to fine-tune and optimize across various network layers.
E2E Delay Segmentation in 5G Networks
The E2E delay in 5G is divided into four main layers, each with its own roles and challenges:
Wireless (Access Layer)
Bearer Network (Aggregation Layer)
Core Network (Core Processing)
Content Delivery Network (CDN and Data Centers)
The image summarizes this into Access, Aggregation, Core, and Data Center components. Let’s take a closer look at each one.
- Wireless Segment (Access Layer)
The wireless segment kicks off at the user device (like a smartphone, IoT sensor, or AR/VR headset) and connects to the nearest 5G base station (gNodeB).
Key role: It’s responsible for managing how radio resources are allocated, the modulation of signals, and making sure spectrum efficiency is high.
Main contributor to latency:
Signal propagation delay
Channel encoding/decoding
Retransmissions due to interference
Optimization Techniques:
Massive MIMO (multiple-input, multiple-output)
Beamforming to minimize interference
Smart spectrum allocation (like using mmWave for ultra-low latency)
This segment is significant because wireless transmission often brings the most variability in delay.
- Bearer Network (Aggregation Layer)
After data leaves the access point, it moves into the aggregation network, commonly referred to as the bearer network. This layer connects different access nodes and channels traffic towards the core.
Key role: It multiplexes traffic from various users and applications.
Latency factors:
Packet queuing at routers/switches
Fiber or microwave backhaul transmission delay
Network congestion during busy times
Optimization Techniques:
Software-defined networking (SDN) to smartly route traffic
Low-latency transport protocols
Edge computing integration to bring processing closer to users
Performance in the bearer network is crucial for supporting high-throughput applications like 4K video streaming and interactive gaming.
- Core Network
The core network (5G Core or evolved packet core, EPC) acts as the brain of the 5G system. It oversees authentication, mobility, and session control.
Key role: It manages both user plane and control plane functions, directing data toward application servers.
Latency contributors:
Packet processing at core routers and gateways
Network slicing overhead
Control signaling
The image highlights EPC/NC (Evolved Packet Core / Network Controller) as a major player in delay within this segment.
Optimization Techniques:
Service-based architecture (SBA) within the 5G Core
Network slicing for time-sensitive applications (like autonomous driving)
Cloud-native deployment of core functions for dynamic scaling
The core network is also where quality-of-service (QoS) guarantees come into play, making it essential for mission-critical applications.
- CDN and Data Center Layer
The final part is the application hosting environment, which typically includes content delivery networks (CDNs) and data centers.
Key role: This layer provides content and services, covering things like cloud VR, AR gaming, and business applications.
Latency contributors:
Distance from the user to the data center
Time taken to retrieve data from storage
Delays from application server processing
Optimization Techniques:
Caching popular content closer to users (using edge CDN nodes)
Placing multi-access edge computing (MEC) nodes near base stations
Implementing AI-driven content distribution strategies
When it comes to cloud VR, even a few extra milliseconds can lead to discomfort or a bad experience, which shows how crucial CDN placement is.
Putting It All Together: Delay Segmentation Table
Segment Function Sources of Latency Optimization
Wireless (Access)Device ↔ Base Station Propagation, retransmissions, channel coding Massive MIMO, beamforming, mm Wave
Bearer Network Aggregates access traffic Queuing, congestion, backhaul delay SDN, low-latency transport, edge compute
Core Network Control & data routing, QoS Packet processing, signaling, network slicing SBA, slicing, cloud-native deployment
CDN/Data Center Application delivery, caching Server processing, storage retrieval, distance delay MEC, caching, AI-driven distribution
Why Delay Segmentation Matters
Understanding E2E delay segmentation is beneficial for network engineers and operators because it helps them:
Identify bottlenecks in latency-sensitive services
Focus investments on optimization (like MEC versus core upgrades)
Open doors to new use cases like self-driving cars, remote surgery, and real-time AR/VR
Craft SLAs (Service Level Agreements) that include realistic performance guarantees
For those in telecom, this segmentation isn’t just theory; it’s a plan for reaching the sub-10ms latency goals of 5G.
Future Outlook: Beyond 5G
As networks transition into 6G, E2E delay segmentation is going to be even more critical. With expected latency targets of under a millisecond, innovations like terahertz communications, AI-native networking, and integrated sensing will reshape how we manage delays.
Edge computing and cloud-native architectures are set to continue growing, pulling content and processing closer to users and shifting latency concerns from distance to smart orchestration.
Conclusion
E2E delay segmentation in 5G networks breaks latency down into four essential segments: wireless, bearer network, core, and CDN/data centers. Each segment plays a crucial role in influencing user experience, particularly for demanding applications like cloud VR and autonomous systems.
By grasping these segments, telecom professionals can more effectively design, optimize, and manage networks that meet the high standards of today’s digital landscape.
The potential of 5G isn’t just about speed; it’s about mastering latency — and understanding delay segmentation is key to unlocking that potential.
