Immediate MDT in 3GPP Networks: A Complete Guide with Example

Immediate MDT in 3GPP Networks: A Complete Guide with Example

As mobile networks get more sophisticated, it’s crucial for operators to optimize performance and enhance user experience. In the past, engineers relied heavily on drive tests—physically measuring coverage and performance—but those can be pricey, time-consuming, and not always thorough.

This is where 3GPP’s Minimization of Drive Test (MDT) framework steps in. MDT allows networks to gather real-world performance data straight from user equipment (UEs), cutting down on the need for manual drive tests. Within this framework, you’ll find two approaches: Logged MDT and Immediate MDT (iMDT).

In this article, we’ll delve into Immediate MDT, using the attached diagram to break down how it functions, its technical workflow, benefits, and its real-world applications in LTE and 5G networks.

What is Immediate MDT?

Immediate MDT (iMDT) is a 3GPP-defined method where the UE reports performance data in real-time during an active connection. Unlike Logged MDT, which saves data on the device for later upload, Immediate MDT sends measurement results to the network right away.

This allows operators to:

Identify network problems like Radio Link Failures (RLFs) as they happen.

Gather location-specific data during live sessions.

Enhance performance for users in real-time.

Immediate MDT Workflow Explained

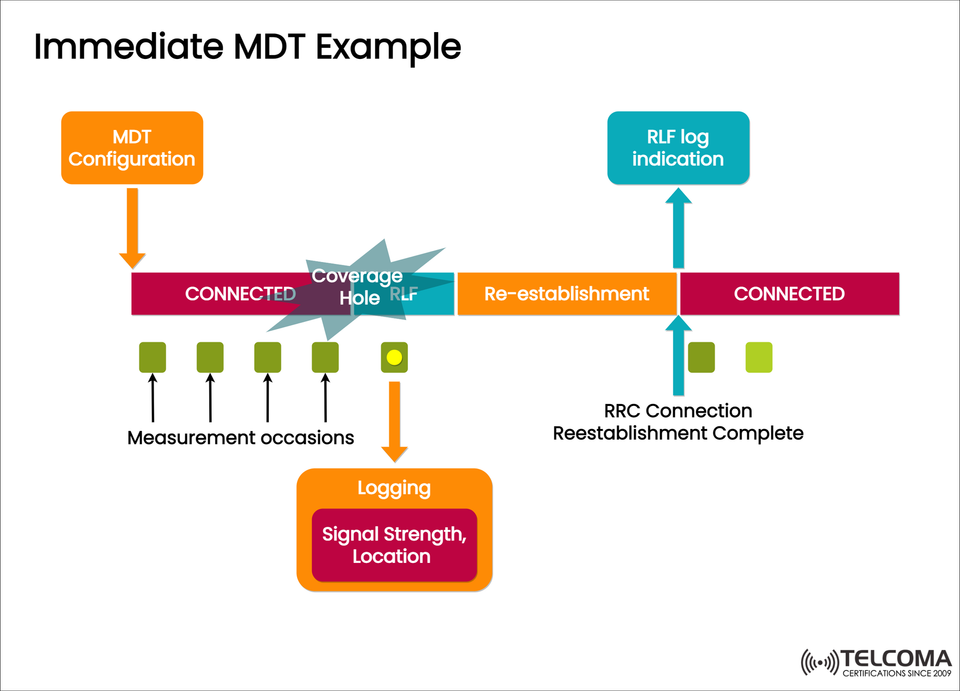

The accompanying diagram illustrates the workflow of Immediate MDT during a connected session:

1. MDT Configuration

The UE gets an MDT configuration from the network.

This configuration specifies what types of data need to be collected (like RSRP, RSRQ, SINR, or call events).

1. Measurement Occasions

While in the CONNECTED state, the UE takes periodic measurements as specified.

These parameters include signal strength, quality metrics, and location data.

1. Coverage Hole and Radio Link Failure (RLF)

If the UE finds itself in a coverage hole, an RLF can occur.

This prompts the MDT process to log signal strength and location for further analysis.

1. Logging and RLF Indication

During an RLF event, the UE records crucial info like signal strength and location coordinates.

An RLF log indication is created and sent once the connection is re-established.

1. Re-establishment and Reporting

The UE undergoes RRC connection re-establishment to get back online.

After reconnecting, the UE sends the RLF log indication along with the logged info.

This helps the network figure out where and why RLFs happen, which is super useful for optimization.

Key Parameters Measured in Immediate MDT

Immediate MDT captures both radio-level metrics and event-based data:

Radio Measurements

• RSRP (Reference Signal Received Power)
• RSRQ (Reference Signal Received Quality)
• SINR (Signal-to-Interference-plus-Noise Ratio)

Events

• Radio Link Failure (RLF)
• Call drops
• Handover failures

Location Information

• GPS-based position logging
• Cell ID for geo-tagging issues

Benefits of Immediate MDT

Immediate MDT offers a bunch of advantages for telecom operators:

Real-Time Problem Detection

• Operators can spot issues like RLFs right away, making troubleshooting faster.

Improved Coverage Optimization

• Data tied to GPS locations helps pinpoint coverage holes more accurately.

Enhanced QoS Monitoring

• Leads to better quality for delay-sensitive services like VoLTE, URLLC, and XR.

Reduced Drive Test Costs

• Less reliance on manual drive tests saves time and resources.

Better User Experience Insights

• Captures real-world performance during active user sessions.

Immediate MDT vs Logged MDT

Feature Immediate MDT Logged MDT Reporting Real-time Stored and reported later Use Case Fast troubleshooting, RLF analysis Long-term trend analysis Impact on UE Higher signaling load Lower signaling, higher battery impact Best for Real-time monitoring Offline data analytics

Immediate MDT in LTE and 5G

In LTE Networks

Immediate MDT was introduced with 3GPP Release 10.

It focused on RLF detection, handover failures, and RSRP/RSRQ measurements.

This helped operators cut back on expensive LTE drive tests.

In 5G Networks

It was expanded in 3GPP Release 15+ for 5G NR.

Added advanced features like beam-level measurements, which are crucial for mmWave and massive MIMO.

Supports QoS Class Identifiers (QCIs) to keep an eye on service-specific performance (like URLLC vs eMBB).

Helps operators maintain strong performance in setups like network slicing and private 5G deployments.

Real-World Applications of Immediate MDT

Coverage Gap Analysis

• Uncovering weak spots in urban high-rises, tunnels, or rural areas.

RLF Troubleshooting

• Figuring out why connections drop during movement (like during handovers).

Quality of Experience (QoE) Monitoring

• Making sure video streaming, VoLTE calls, and gaming are smooth.

5G Beamforming Optimization

• Measuring beam-level QoS to refine 5G NR deployments.

Enterprise Private Networks

• Ensuring service level agreements (SLAs) for critical applications in factories, hospitals, and campuses.

Challenges of Immediate MDT

While Immediate MDT brings plenty of benefits, there are some hurdles too:

Signaling Overhead: Real-time reporting adds load on the control plane.

Battery Drain: Frequent measurements and GPS usage might affect device battery life.

Privacy Concerns: Location-based reporting needs to adhere to privacy regulations carefully.

Big Data Handling: The sheer volume of measurement data calls for robust analytics platforms.

To tackle these challenges, operators are:

Optimizing reporting intervals.

Leveraging AI/ML for automated data filtering.

Implementing data anonymization techniques.

The Future of Immediate MDT

As we look forward to 5G Advanced (Release 18+) and eventually 6G, Immediate MDT is set to keep evolving. Upcoming improvements could involve:

AI-driven MDT: Automated detection and resolution of network issues.

Edge Integration: Analyzing MDT data at the edge for ultra-low latency.

Cross-Domain Monitoring: Bringing MDT data together with other KPIs for comprehensive performance insights.

6G Preparedness: Preparing for advanced use cases like holographic communication and digital twins.

Conclusion

Immediate MDT (iMDT) has become a key player in network optimization, allowing operators to gather real-time performance data directly from user devices. Unlike Logged MDT, which lags in feedback, Immediate MDT delivers instant insights on issues like RLFs, making it easier for operators to troubleshoot, enhance coverage, and improve QoS.

In LTE, it helped reduce the need for drive testing. In 5G, it’s crucial for managing advanced technologies like beamforming, mmWave, and network slicing.

For telecom professionals, embracing Immediate MDT isn’t just about cutting costs—it’s about ensuring resilient, high-quality, and future-ready mobile networks.
