Intra-Band Non-Contiguous Carrier Aggregation Explained: Boosting LTE and 5G Spectrum Efficiency
Intra-Band Non-Contiguous Carrier Aggregation in LTE and 5G: Making the Most of Fragmented Spectrum
In the world of mobile communications, making efficient use of spectrum is crucial. As operators work to provide faster data rates and better connectivity, Carrier Aggregation (CA) stands out as one of the most significant features introduced by 3GPP Release 10 (LTE-Advanced) and further developed in 5G NR (New Radio).
CA lets operators combine multiple carriers, known as Component Carriers (CCs), to create a wider bandwidth channel, which means better throughput and an enhanced user experience.
While Intra-Band Contiguous CA works by combining adjacent carriers in the same frequency band, Intra-Band Non-Contiguous Carrier Aggregation takes it a step further by allowing non-adjacent carriers in the same frequency band to be aggregated. This is especially important for operators who have to deal with fragmented spectrum allocations.

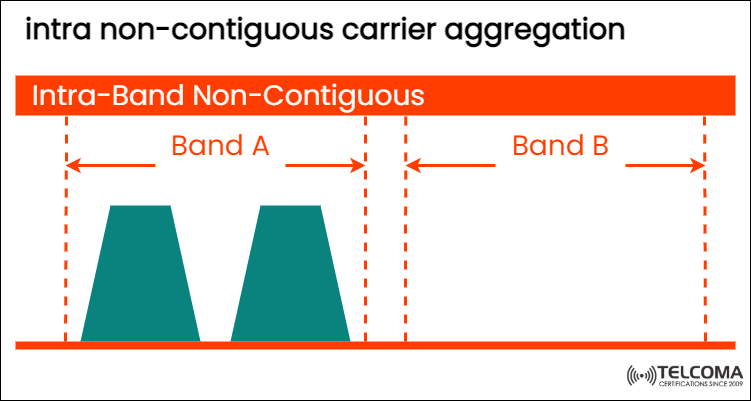

The image provided makes this concept clear, showing two distinct carriers within Band A, with a little frequency gap between them, working together as a single logical channel.
Understanding Carrier Aggregation (CA)
Before we dive into the non-contiguous type, let’s quickly revisit what Carrier Aggregation is all about in today’s networks.
Carrier Aggregation (CA) combines multiple Component Carriers (CCs) to increase bandwidth and throughput.
Each component carrier can range from up to 20 MHz in LTE to up to 100 MHz in 5G NR.
The total bandwidth can reach 100 MHz in LTE-Advanced (5CC) and up to 640 MHz in 5G NR (16CC).
The concept is straightforward: by merging carriers, the network can send and receive more data at once, making it more efficient and improving the user experience.
Types of Carrier Aggregation
Carrier Aggregation can be categorized based on how the carriers are organized across or within different frequency bands.
Type | Description | Example
Intra-Band Contiguous | Adjacent carriers within the same frequency band | Band 3: 1800 MHz (10 + 10 MHz contiguous)
Intra-Band Non-Contiguous | Carriers in the same band but separated by a frequency gap | Band 40: 2300 MHz (20 + 20 MHz with gap)
Inter-Band Aggregation | Carriers from different frequency bands | Band 3 (1800 MHz) + Band 7 (2600 MHz)
The image also visually depicts the Intra-Band Non-Contiguous type, where both carriers belong to Band A, but there’s a gap in the frequency spectrum between them.
What is Intra-Band Non-Contiguous Carrier Aggregation?
Intra-Band Non-Contiguous Carrier Aggregation involves combining two or more component carriers within the same frequency band that aren’t adjacent, meaning there’s a frequency gap in between.
For instance:
Band A (2300 MHz) consists of two 20 MHz carriers, separated by a 10 MHz gap.
When combined, this results in a total effective bandwidth of 40 MHz, enhancing data capacity without needing continuous spectrum blocks.
This approach is particularly helpful in areas where spectrum fragmentation happens due to legacy allocations, spectrum auctions, or partial operator registrations within a band.
How Intra-Band Non-Contiguous CA Works
The functioning of intra-band non-contiguous CA is similar to other CA types but comes with extra RF complexity due to the frequency separation.
Operational Steps:
Carrier Discovery and Configuration: The base station (eNode B in LTE or gNB in 5G NR) spots the non-adjacent carriers within the same band that can be combined.
Primary and Secondary Carrier Assignment:
The Primary Component Carrier (PCC) manages all control signaling and scheduling.
Secondary Component Carriers (SCCs) handle extra user data, increasing the total bandwidth.
RRC Signaling Setup: The base station updates the UE through RRC (Radio Resource Control) messages about which carriers will be aggregated and their corresponding frequency positions.
Joint Scheduling and Transmission: After setup, both carriers can operate as one combined unit, enabling the UE to send and receive data simultaneously across them.
Carrier Synchronization: The UE needs to keep time and frequency synchronization across non-contiguous carriers, adding a layer of complexity compared to contiguous CA.
Illustration from the Image
The image from Tel coma Technologies illustrates this idea well:
The two teal peaks within Band A represent two distinct component carriers.
The frequency gap between them emphasizes their non-contiguous nature.
Band B is outside Band A and isn’t included in this aggregation.
So, the carriers belong to the same frequency band (hence intra-band), but they aren’t continuous, which requires additional hardware and baseband complexity.
Advantages of Intra-Band Non-Contiguous Carrier Aggregation
Even with its complexities, intra-band non-contiguous CA brings significant operational and performance advantages:
- Optimized Spectrum Utilization
Enables operators to use fragmented spectrum blocks within a single band effectively.
Turns otherwise underused frequency gaps into usable capacity.
- Higher Data Throughput
Combining separated carriers enhances total available bandwidth, leading to higher peak data rates.
- Improved User Experience
Facilitates faster downlink and uplink speeds, especially for data-heavy applications like 4K streaming and gaming.
- Simplified Licensing
Operators can aggregate non-adjacent carriers within the same band license, avoiding the complications of coordinating across multiple bands.
- Compatibility with Legacy Infrastructure
Can be deployed within existing LTE or NR bands requiring minimal spectrum rearrangement.
Challenges and Implementation Considerations
While intra-band non-contiguous CA has clear benefits, it also presents some technical challenges that need to be managed on both network and device levels.
- Increased RF Complexity
More advanced RF chains or local oscillators might be necessary to handle non-contiguous frequencies.
- Power Consumption
Juggling multiple frequency gaps can lead to higher power usage for the UE.
- Synchronization Challenges
The UE has to maintain synchronization across separated carriers—a more complex task than with contiguous aggregation.
- Interference Management
The vacant spectrum between carriers might lead to potential interference or unwanted emissions.
- Spectrum Fragmentation
The success of this method hinges on the frequency separation; larger gaps might undermine efficiency.
Example: LTE Band 40 (2300 MHz)
A real-life case of intra-band non-contiguous CA can be seen in LTE Band 40, which is commonly used in Asia-Pacific regions.
Band 40 covers frequencies from 2300 to 2400 MHz.
Let’s say an operator holds 2300-2320 MHz and 2340-2360 MHz, leaving a 20 MHz gap in between.
These two non-adjacent carriers can be combined, achieving an effective bandwidth of 40 MHz, thus significantly boosting data rates.
This setup is especially advantageous in areas with limited spectrum, maximizing the resources available.
Comparison with Other CA Types
Feature | Intra-Band Contiguous | Intra-Band Non-Contiguous | Inter-Band Aggregation
Frequency Gap: None | Present within the same band | Between bands
Hardware Complexity: Low | Moderate | High
Spectrum Efficiency: High (simple) | High (fragmented) | Very High (flexible)
RF Design Impact: Minimal | Requires advanced RF front-end | Requires multiple RF chains
Example Band: Band 3 (1800 MHz) | Band 40 (2300 MHz) | Band 3 + Band 7
Intra-Band Non-Contiguous CA in 5G NR
Within 5G New Radio, intra-band non-contiguous carrier aggregation remains pivotal, particularly in mid-band (FR1) settings between 2 GHz and 6 GHz.
Key Enhancements in 5G NR:
Each carrier can have a wider bandwidth of up to 100 MHz, allowing for flexible aggregation.
Dynamic spectrum sharing (DSS) can combine LTE and NR carriers within a similar band.
Advanced numerologies (15–120 kHz subcarrier spacing) help improve timing alignment between non-contiguous carriers.
For instance, in 5G NR n78 (3.5 GHz band), operators can join two 80 MHz blocks separated by a 20 MHz gap, leading to almost 160 MHz of effective aggregated bandwidth.
Why It Matters in Real-World Networks
The relevance of intra-band non-contiguous carrier aggregation keeps rising as spectrum fragmentation becomes more widespread around the globe.
Operators can maximize the potential of their current spectrum without having to wait for new allocations.
UE manufacturers are incorporating support for it in modern chipsets, ensuring smooth operation across fragmented networks.
End-users benefit from faster download and upload speeds, reduced latency, and a more reliable experience.
In short, it’s a smart engineering fix for a real-world regulatory problem.
Conclusion
Intra-Band Non-Contiguous Carrier Aggregation is essential for achieving greater data rates and better efficiency in LTE-Advanced and 5G networks. By merging non-adjacent carriers within the same band, operators can tackle spectrum fragmentation, enhance throughput, and provide a superior mobile broadband experience.
Although it does introduce some added RF and synchronization complexity, the trade-offs are certainly worthwhile, especially in markets with uneven spectrum distributions. As we move towards 5G-Advanced (Release 18 and beyond), intra-band non-contiguous CA will continue to be key for flexible spectrum management and effective network performance.
