Logged MDT in LTE/5G – Architecture, Workflow, and Benefits

Minimization of Drive Tests (MDT) is a crucial feature that 3GPP introduced to cut down on the costs associated with physical drive testing for gathering network performance data. MDT comes in two versions: Immediate MDT, which reports in real-time, and Logged MDT, which defers reporting.

This piece will focus on Logged MDT, which is particularly beneficial for optimizing coverage and monitoring long-term network performance, especially in LTE and 5G networks.

What is Logged MDT?

Logged MDT enables User Equipment (UE) to record network measurements over time, even when it’s in RRC Idle mode. Instead of sending data right away, the UE stores measurement reports locally and uploads them later when it switches back to RRC Connected mode.

This method cuts down on network signaling and helps protect battery life, while still giving operators valuable insights into user experiences.

How Logged MDT Works (Step-by-Step)

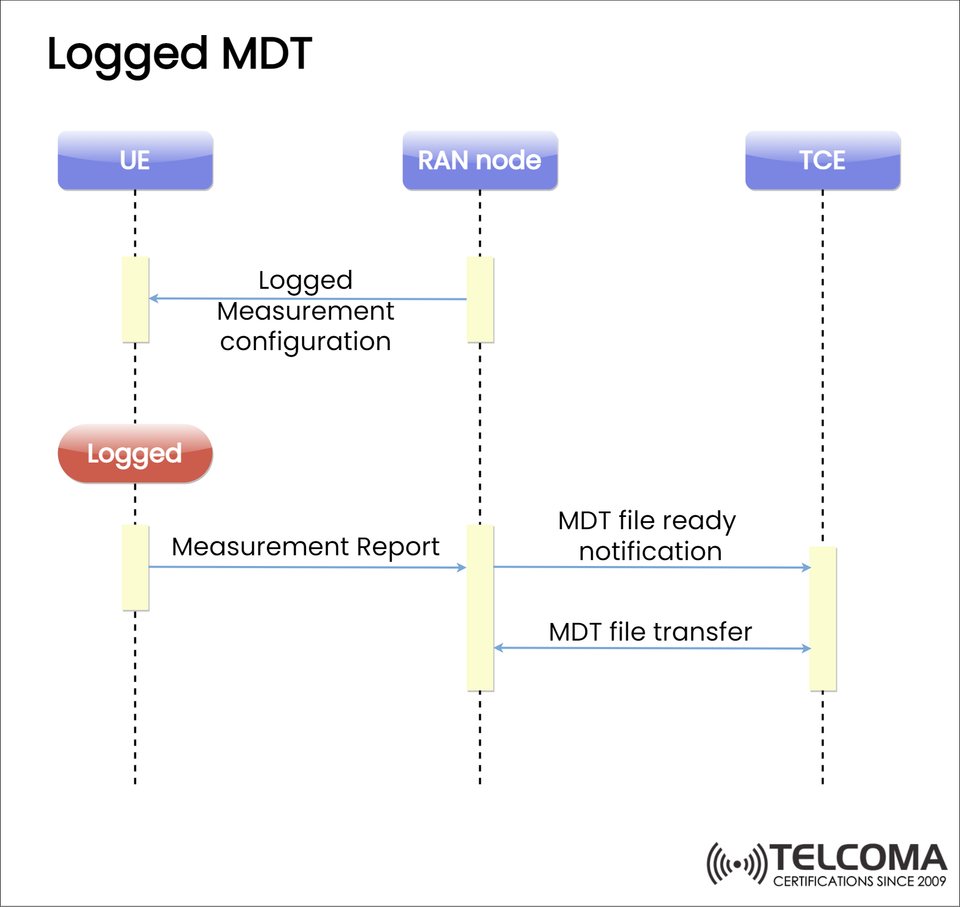

The uploaded image nicely shows the Logged MDT workflow involving three main entities – UE, RAN Node, and Trace Collection Entity (TCE):

Logged Measurement Configuration:

The network sends a setup message to the UE while it’s in RRC Connected state.

This message includes logging parameters like measurement events, area scope, and reporting conditions.

Logging in Idle Mode:

When the UE enters RRC Idle mode, it continues to gather measurements based on the configuration.

Measurements consist of things like RSRP, RSRQ, event triggers, cell IDs, and time stamps.

Measurement Report Upload:

After the UE goes back to RRC Connected mode, it uploads the stored measurement data to the RAN node.

TCE Notification & File Transfer:

The RAN node creates an MDT file and sends a file ready notification to the TCE.

The TCE then retrieves the MDT file for further analysis.

This delayed reporting method ensures there’s minimal disruption to UE performance while still capturing important data.

Benefits of Logged MDT

Logged MDT is vital for network optimization and planning. It has several key advantages:

✅ Cost Reduction: Reduces the need for extensive drive tests, thus saving on operational costs.

✅ Idle Mode Data Collection: Gathers data from areas where active calls aren’t happening, which boosts coverage maps.

✅ Battery Efficiency: Lowers signaling load and power consumption compared to Immediate MDT.

✅ QoE Insights: Gives operators data that truly reflects the user experience.

✅ Supports Mobility Optimization: Logs measurements during cell reselection and idle mobility events.

Logged MDT Use Cases in LTE & 5G

Logged MDT is particularly relevant in 5G deployments where a mix of use cases and service needs require precise coverage improvement. Some main applications include:

Coverage Hole Detection: Spotting dead zones and weak signal areas.

Interference Management: Linking RSRQ degradation to cell edge interference.

Network Planning: Aiding in PCI planning and neighbor relation optimization.

QoE Benchmarking: Gaining understanding of user experiences during real-life mobility.

SON (Self-Organizing Networks): Providing data for SON functions to enhance automation.

Logged MDT vs. Immediate MDT – Quick Comparison

Feature Logged MDT Immediate MDT Data Collection Mode Stored locally in UE, uploaded later Reported in real-time Network Impact Low, minimal signaling load Higher signaling overhead Battery Consumption Low, as data is logged during idle periods Higher, due to continuous active reporting Best Use Case Coverage optimization, long-term analysis Real-time troubleshooting, fault analysis

Challenges with Logged MDT

Even though Logged MDT offers notable benefits, it also comes with some challenges:

Delayed Reporting: Data is only available after the UE reconnects to the network.

UE Dependency: It depends on UE vendor implementation for logging precision.

Limited Real-Time Use: It’s not the best option for immediate troubleshooting or outage detection.

Best Practices for Logged MDT Implementation

To get the most out of Logged MDT, operators should consider these best practices:

Fine-Tune Logging Parameters: Only configure essential events to boost UE storage and reporting efficiency.

Correlate with Other KPIs: Merge MDT logs with call trace and performance metrics for a fuller picture.

Leverage Big Data Analytics: Use AI/ML techniques to detect coverage trends and foresee network issues.

Ensure Privacy Compliance: Anonymize UE data in line with GDPR and local regulations.

Expert Insight: Why Logged MDT Matters in the 5G Era

With 5G bringing in higher frequencies, tighter small cell setups, and new advanced use cases like URLLC (Ultra-Reliable Low-Latency Communication), operators require constant real-world data.

Logged MDT helps them achieve that by:

Spotting coverage issues without the need for costly drive tests.

Linking user experience data with network slice performance.

Planning beamforming and handover strategies with greater accuracy.

As networks transition towards autonomous operations (SON/AI-driven), Logged MDT becomes essential for closed-loop optimization.

Key Takeaways

To sum it all up, here are the key points about Logged MDT:

✅ Passive Data Collection: It logs measurements while in idle mode and uploads them when connected.

✅ Optimized for Coverage Analysis: Great for long-term planning and enhancing weak coverage spots.

✅ Lower Network Impact: It has minimal signaling overhead compared to real-time reporting.

✅ Supports Multi-RAT Networks: Functions across both LTE and 5G for unified data gathering.

✅ Critical for 5G Planning: It aids in optimizing small cells, mmWave coverage, and mobility events.

Conclusion

Logged MDT is a powerful tool for passive network data collection that aids operators in enhancing coverage, trimming operational costs, and improving user experiences. Unlike Immediate MDT, it avoids excessive signaling and battery drain by gathering data in the background and uploading it later.

As 5G networks keep expanding, Logged MDT will become a critical part of strategies for network optimization, especially for small cells, indoor coverage, and rural expansion efforts. By smartly configuring and analyzing Logged MDT data, operators can provide seamless, reliable, and high-quality mobile services to their subscribers.

When paired with Immediate MDT, operators get a complete 360° view of their network performance—real-time troubleshooting insights from Immediate MDT and a broader coverage overview from Logged MDT. Together, these tools are key components of modern network optimization strategies in LTE, 5G, and beyond.
