Multi-User and Massive MIMO Beamforming: Unlocking 5G and 6G Network Efficiency
Understanding Multi-User and Massive MIMO Beamforming
One of the biggest game changers in 5G and future 6G networks is the use of massive MIMO (Multiple Input, Multiple Output) along with beamforming technologies. These innovations are really shaking up wireless communication, allowing providers to connect more users at once while boosting spectral efficiency, reliability, and coverage.

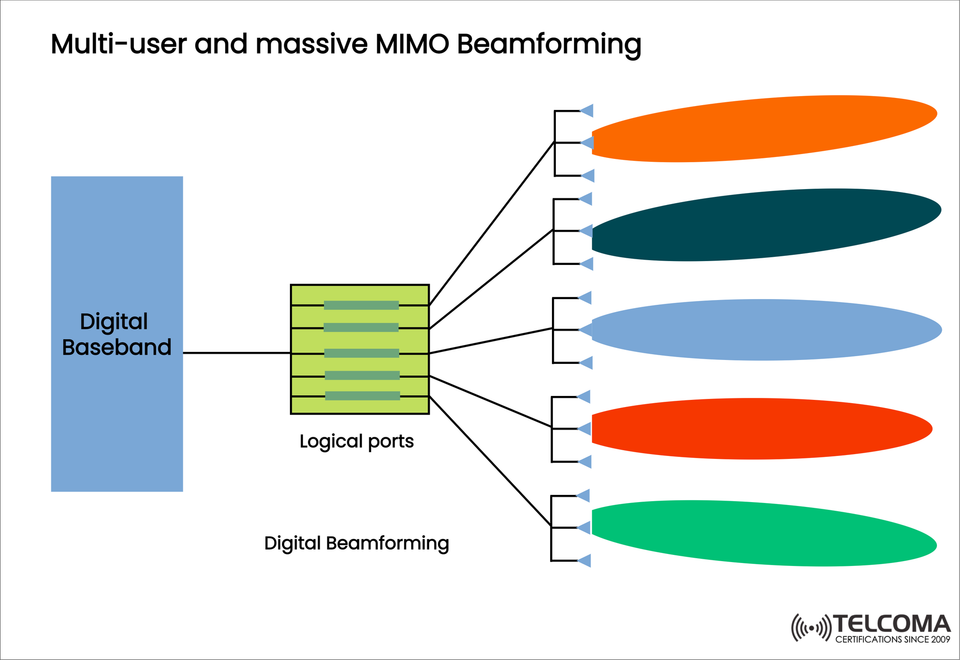

The diagram we have uploaded shows how it works: signals from a digital baseband go through logical ports into a digital beamforming architecture, which sends focused beams to different users or devices. Instead of scattering signals everywhere, beamforming makes sure communications are precise and effective.
In this blog, we’ll dig into:
The basics of multi-user MIMO (MU-MIMO) and massive MIMO
The mechanics of digital beamforming
The advantages of using these technologies together
The challenges we face and what the future looks like for 6G
What is MIMO?
MIMO (Multiple Input, Multiple Output) is a wireless tech that employs multiple antennas on both the sending and receiving ends to enhance communication quality.
Traditional SISO (Single Input, Single Output): One antenna sends, and one receives.
MIMO: With multiple antennas, we can send parallel data streams, which boosts throughput and reliability.
As networks have advanced, MIMO has also evolved:
SU-MIMO (Single User MIMO): Connects to one user at a time, using multiple streams.
MU-MIMO (Multi-User MIMO): Handles multiple users at once by separating signals in space.
Massive MIMO: Takes this further with dozens or even hundreds of antennas, allowing for huge gains in capacity.
Beamforming: Targeting the Signal
Beamforming is about concentrating a wireless signal in certain directions, as opposed to broadcasting it all over the place.
The diagram illustrates how signals get digitally processed in the baseband, move through logical ports, and are transmitted through antennas using carefully designed phases. This results in multiple beams aimed at specific users or devices.
How It Works:
Phase Adjustment: Antennas send the same signal, but with slight changes in timing.
Constructive Interference: Signals merge in the desired direction, amplifying the beam.
Destructive Interference: Signals cancel each other out in non-targeted directions, which helps cut down interference.
Because of this, a single base station can effectively serve many users at once.
Combining Multi-User and Massive MIMO with Beamforming
The real breakthrough happens when we merge multi-user MIMO with massive MIMO under beamforming:
Multi-User MIMO (MU-MIMO): * Allows multiple users to connect at the same time. * Each user gets their own beam, which avoids interference.
Massive MIMO: * Utilizes a large number of antennas (like 64, 128, or even more). * Each antenna plays a role in precise beamforming. * Provides spectral efficiency and capacity boosts way beyond what 4G can do.
Why It’s Important:
More Users per Cell: Meaningful spectrum usage lets hundreds connect at the same time.
Higher Data Rates: Spatial multiplexing allows for numerous streams, ramping up throughput.
Improved Reliability: Targeted beams lessen interference and fading issues.
Energy Efficiency: Focused signals need less power to transmit.
Digital Beamforming in Practice
The image highlights digital beamforming, which is key in today’s MIMO systems:
Digital Baseband Processing: * Manages modulation, coding, and data streams. * Preps signals for beamforming.
Logical Ports: * Act as connectors between baseband signals and antennas. * Each port corresponds to a logical channel that will be beamed out.
Beam Generation: * Digital algorithms figure out beam patterns. * Multiple independent beams are created at the same time.
Targeted Transmission: * Each user gets a dedicated beam, which ensures better throughput and less interference.
Unlike analog beamforming (where weights are applied in the RF domain), digital beamforming takes place in the digital domain, which offers more flexibility, adaptability, and scalability.
Benefits of Multi-User and Massive MIMO Beamforming
📈 Spectral Efficiency
Sends multiple streams within the same frequency band.
Maximizes data transfer per Hz of spectrum.
🌍 Coverage Improvement
Narrow beams boost reach by concentrating signal power.
Cuts down on dead zones in both urban and rural areas.
⚡ Throughput and Capacity
Can support hundreds of users per cell with fast connections.
🔒 Interference Reduction
Beams steer clear of overlapping with other users.
Enhances reliability and quality of service.
🔋 Energy Efficiency
Base stations can operate on less overall power.
Aligns with green networking goals.
Challenges with Multi-User and Massive MIMO Beamforming
While this tech shows a lot of promise, there are hurdles to tackle:
Hardware Complexity * Big antenna arrays mean higher costs and design difficulties.
Channel State Information (CSI) Needs * Effective beamforming relies on accurate CSI. * In rapidly changing settings, getting reliable CSI can be tricky.
Processing Power * Digital beamforming demands advanced baseband processing, which can be quite taxing.
Deployment Challenges * Large antenna arrays can be tough to set up in crowded urban environments.
Inter-Beam Interference * If beams aren't perfectly aligned, they might still interfere with each other.
Where Multi-User and Massive MIMO Beamforming Can Be Used
5G Networks: * Serves as a key driver for enhanced mobile broadband (eMBB). * Crucial for urban areas and large venues.
6G Networks (Looking ahead): * Will take MU-MIMO and beamforming even further with AI-powered dynamic beam allocation. * Expected to support holographic communications, XR, and ultra-dense IoT.
Private and Industrial Networks: * Future factories will depend on low-latency, beamformed connections. * Smart campuses can use MU-MIMO to link thousands of sensors seamlessly.
Quick Comparison: Analog vs. Digital Beamforming
Feature Analog Beamforming Digital Beamforming Flexibility Low High (dynamic control)Number of Beams One Multiple at once Processing Domain RF domain Digital baseband Scalability Limited Highly scalable Cost Lower Higher (but decreasing with advancements)
This comparison shows why digital beamforming is the go-to choice for massive MIMO in 5G and 6G.
Wrap-Up
Multi-user and massive MIMO beamforming is at the core of modern wireless communication. By combining extensive antenna arrays with smart digital processing, networks can effectively serve multiple users at once, delivering high reliability, minimal interference, and efficient spectrum use.
Even though there are challenges, like hardware complexity and the need for accurate CSI, the benefits significantly outweigh the downsides. Looking ahead to 6G, expect to see even more advanced beamforming solutions driven by AI, machine learning, and intelligent network management.
