Network Discovery in Optical Transport Networks (OTN): How OTN Elements Communicate

Network Discovery by OTN Network Elements

In today’s optical transport systems, automation, scalability, and interoperability are key. The Optical Transport Network (OTN), as defined by ITU-T G.709, standardizes data transport and includes smart network discovery methods that enable network elements (NEs) to automatically identify, configure, and interact with each other.

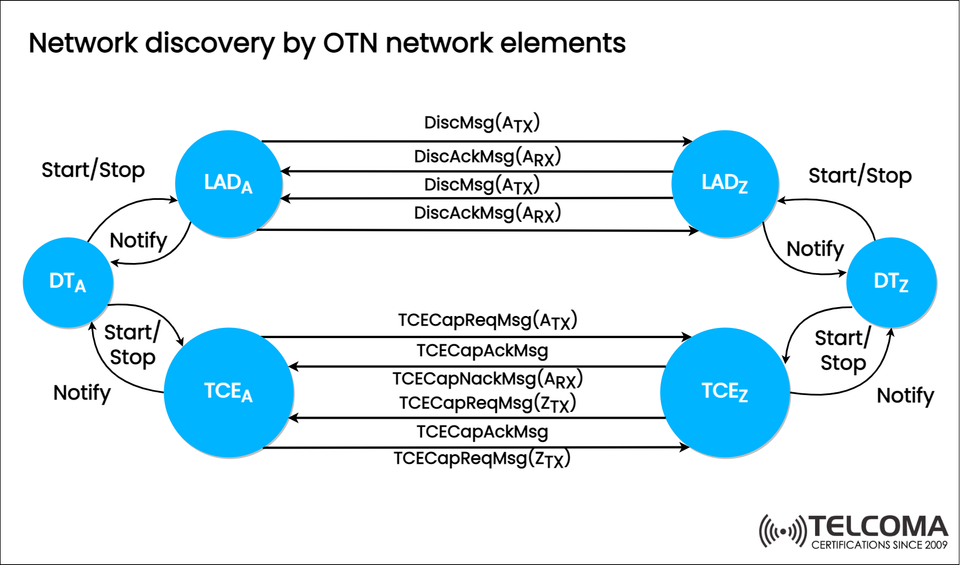

The diagram titled “Network discovery by OTN network elements” illustrates how these components communicate through structured message exchanges, allowing them to find links, confirm configurations, and maintain reliable communication paths.

By reducing the need for manual intervention, this approach cuts down on configuration mistakes and forms the basis for self-configuring optical networks.

What is Network Discovery in OTN?

Network discovery refers to the process where OTN nodes automatically detect nearby nodes and share capability information to set up operational links. This functionality is crucial for creating dynamic, software-defined optical networks where elements from various vendors need to communicate effortlessly.

OTN devices use standardized messaging protocols to exchange discovery and capability negotiation messages, detailing how they will function over an optical connection.

The image highlights two main communication relationships:

Between Local and Remote Link Adapters (LADs)

Between Transport Channel Entities (TCEs)

These interactions happen on both ends of a link, identified as Node A and Node Z in the diagram.

Key OTN Components in Network Discovery

Let’s break down the entities shown in the image and what they do:

Component Full Form / Function DT (Discovery Trigger)Starts and stops the discovery process; manages notifications. LAD (Link Adaptation Device)Manages basic discovery messaging (Disc Msg, Disc Ack Msg).TCE (Transport Channel Entity)Oversees transport channel capabilities and feature negotiation (TCE Cap Req Msg, TCE Cap Ack Msg).

These entities collaborate to ensure that both sides of a link — A-side and Z-side — can acknowledge each other, check compatibility, and establish a connection.

Step-by-Step Breakdown of the OTN Discovery Process

The discovery process depicted in the image can be divided into two main communication phases:

Link Adaptation Discovery (LAD) Phase

Transport Channel Entity (TCE) Capability Exchange Phase

Each phase utilizes specific control messages to synchronize the OTN elements.

3.1. Link Adaptation Discovery (LAD) Phase

The LAD phase serves as the initial stage of network discovery, during which OTN nodes send identification and acknowledgment messages to verify link connectivity.

Process Flow:

Start/Stop Trigger: The discovery trigger (DT) sends a Start command to initiate link discovery between LADₐ and LADz.

Discovery Message (Disc Msg(ATx)): LADₐ sends a discovery message towards LADz, including node and interface identifiers.

Acknowledgment (Disc Ack Msg(ARx)): After receiving the message, LADz responds with an acknowledgment, confirming the link's presence and communication compatibility.

Bidirectional Exchange: This process then happens in reverse (Z→A), ensuring both nodes identify each other.

Notify/Stop: Upon successful discovery, LAD informs DT of completion. If there are issues, a Stop signal interrupts the process.

Outcome:

Nodes A and Z recognize each other as valid neighbors.

Link integrity and physical connectivity are established.

LAD discovery creates the foundation for higher-level capability negotiation.

3.2. Transport Channel Entity (TCE) Capability Exchange Phase

After the link discovery phase wraps up, OTN elements move on to capability negotiation, which is managed by TCEA and TCEZ entities.

This phase makes sure both ends are set up with compatible configurations like frame formats, bandwidth, and FEC types before the transport channel goes live.

Message Flow:

Start/Stop Trigger: The DT kicks off the TCE capability exchange between TCEA and TCEZ.

Capability Request (TCE Cap Req Msg(ATx)): TCEA sends a request message with supported parameters (like ODU types, signal rates, and FEC modes).

Capability Acknowledgment (TCE Cap Ack Msg): If TCEZ can support the requested parameters, it sends back an acknowledgment.

Capability Negative Acknowledgment (TCE Cap Nack Msg(ARx)): If there's a mismatch (e.g., an unsupported feature or configuration conflict), TCEZ responds with a NACK (negative acknowledgment).

Bidirectional Verification: TCEZ sends its own TCECapReqMsg(ZTx) to TCEA for validation.

Notify/Stop: After successful negotiation, DT receives a notification and can proceed to activate the transport link.

Outcome:

Capability compatibility confirmed.

Transport channel readied for service provisioning.

Any mismatches get reported for reconfiguration.

Why Network Discovery Matters in OTN

Modern optical networks span huge areas and often involve components from multiple vendors. Without automated discovery, setting up and managing such systems would be slow and prone to mistakes.

Here’s why OTN network discovery is important:

Interoperability: Guarantees that different vendors’ OTN devices can communicate using standardized discovery messages.

Automation: Cuts down on the need for manual configuration through automatic neighbor detection.

Fault Detection: Quickly identifies physical or logical link failures.

Scalability: Supports the dynamic addition of nodes in large optical networks.

Service Assurance: Ensures only links that are compatible are used, keeping service integrity intact.

This system supports the self-healing and self-configuring features of next-gen optical networks.

Benefits of Automated Discovery in Optical Transport

Technical Advantages

Reduced commissioning time: Automatic neighbor discovery cuts down manual setup time.

Enhanced reliability: Ongoing monitoring spots inconsistencies early.

Dynamic topology updates: Allows for real-time network mapping for SDN controllers.

Improved maintenance: Fault localization is easier with notifications.

Operational Advantages

Multi-vendor interoperability: Standardized discovery messaging ensures smooth integration.

Lower OPEX: Automation lightens the load on field engineers.

Service agility: Quick provisioning of new optical paths supports on-demand bandwidth.

Integration with SDN and Next-Gen Networks

The OTN discovery process fits perfectly with Software-Defined Networking (SDN) principles. By supplying real-time topology and capability data, discovery messages provide controllers with up-to-date insights about network resources.

This facilitates:

Centralized network control through SDN orchestration.

Automated path computation using PCE (Path Computation Element).

Zero-touch provisioning in hybrid OTN/IP transport networks.

Conclusion

The diagram “Network discovery by OTN network elements” effectively shows how LADs and TCEs work together for intelligent, automated link discovery in OTN structures.

Through a series of clearly defined messages — from DiscMsg to TCECapReqMsg — OTN devices can identify, validate, and configure themselves automatically.

This discovery mechanism is crucial for autonomous optical networking, ensuring high reliability, quick setup, and seamless multi-vendor interoperability.

As networks transition toward software-defined and AI-driven frameworks, OTN discovery will remain a vital element in building efficient, dynamic, and resilient transport systems.
