O-RAN Architecture Explained: Key Components, Interfaces, and Functionality
Getting to Grips with O-RAN Architecture: The Next Step for Open and Smart Radio Networks
The O-RAN (Open Radio Access Network) architecture is shaking things up in the telecom world by bringing in openness, intelligence, and interoperability to the RAN space. The accompanying image highlights how O-RAN breaks down traditional RAN components into modular, software-based parts that interact through standardized open interfaces.
Created by the O-RAN Alliance, this framework promotes vendor diversity, cost efficiency, and innovation, setting the stage for a flexible and programmable 5G network.
Shifting from Traditional RAN to O-RAN
In the old school RAN systems, hardware and software were tightly integrated and typically came from the same vendor. This closed ecosystem stifled innovation, jacked up costs, and limited control for operators.
O-RAN tackles these challenges by:
Separating hardware from software
Standardizing interfaces among the network components
Allowing multi-vendor interoperability
Incorporating AI and ML for smarter network optimization
The result? A virtualized, open, and intelligent RAN that supports automation, scalability, and quicker service innovations.
A Close Look at O-RAN Architecture

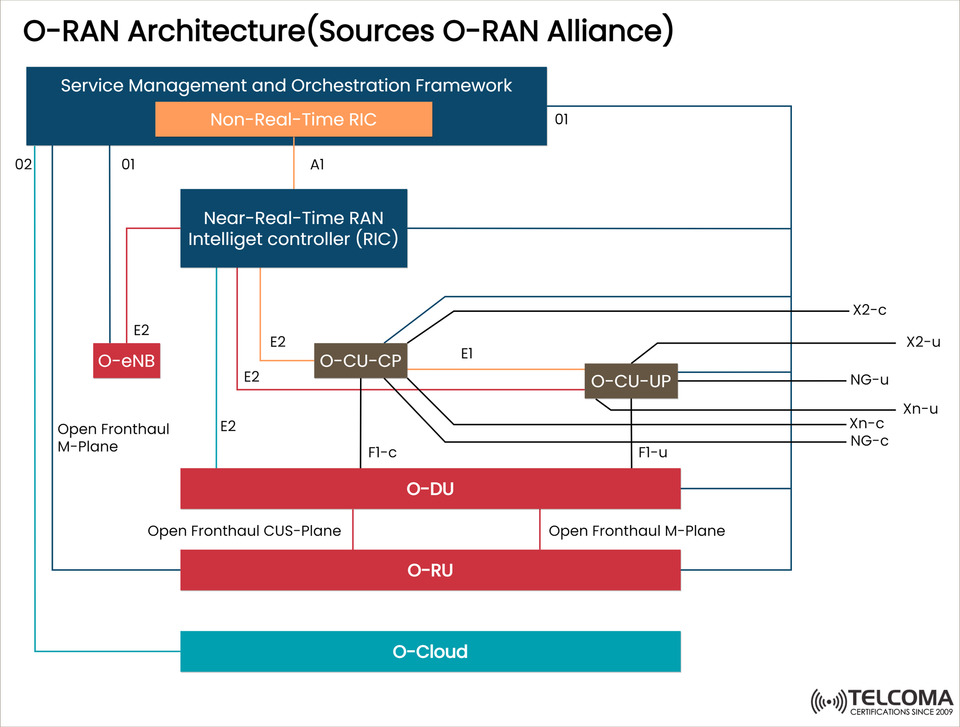

The image shared provides a view of the O-RAN logical architecture as specified by the O-RAN Alliance. It's organized around several crucial building blocks:
Service Management and Orchestration (SMO) Framework
RAN Intelligent Controllers (RIC)
- Non-Real-Time (Non-RT) RIC
- Near-Real-Time (Near-RT) RIC
Central Unit (O-CU)
- O-CU-CP (Control Plane)
- O-CU-UP (User Plane)
Distributed Unit (O-DU)
Radio Unit (O-RU)
O-Cloud Infrastructure
These elements connect through standardized open interfaces such as A1, E1, E2, F1, and Open Fronthaul (M-Plane, CUS-Plane), ensuring flexibility and compatibility.
Core Components of the O-RAN Architecture
- Service Management and Orchestration (SMO) Framework
The SMO layer oversees high-level management and orchestration for the entire O-RAN system. Its functions include:
Configuring networks, monitoring, and managing lifecycles
Optimizing RAN resources
Onboarding applications (rApps/xApps)
Coordinating with Non-RT RIC
Interface: O1 links SMO to O-RU, O-DU, and O-CU for control and management.
RAN Intelligent Controller (RIC)
The RAN Intelligent Controller acts as the brain of the O-RAN system, injecting intelligence and automation through AI/ML algorithms. It has two main parts:
a. Non-Real-Time RIC (Non-RT RIC)
Lives within the SMO framework.
Works with timescales longer than 1 second.
Handles policy management, trains AI/ML models, and performs non-time-sensitive optimizations.
Connects to Near-RT RIC via the A1 interface.
Key functions:
RAN policy oversight
AI/ML model lifecycle management
Performance tracking and analytics
b. Near-Real-Time RIC (Near-RT RIC)
Functions at 10 ms to 1 s time scales.
Executes RAN control actions such as load balancing, interference management, and mobility optimization almost on the spot.
Hosts xApps — microservices that dynamically manage specific RAN functionalities.
Interfaces:
E2 Interface connects Near-RT RIC to O-DU, O-CU-CP, and O-CU-UP.
A1 Interface links Near-RT RIC to Non-RT RIC for policy updates.
O-CU (Central Unit)
The O-CU handles upper-layer RAN functions and splits into two logical entities:
a. O-CU-CP (Control Plane)
Manages control functions such as:
RRC (Radio Resource Control)
Setting up and breaking connections
Mobility management and signaling
Interfaces:
E1 connects to O-CU-UP
F1-C links to O-DU for control signaling
b. O-CU-UP (User Plane)
Manages data forwarding and user traffic. Functions involve:
PDCP (Packet Data Convergence Protocol)
Header compression and security
Interfaces:
E1 (with O-CU-CP)
F1-U (with O-DU)
NG-U/Xn-U/X2-U (to Core or neighboring CUs)
O-DU (Distributed Unit)
The O-DU executes lower-layer RAN protocols like RLC (Radio Link Control), MAC (Medium Access Control), and parts of the PHY layer.
Key responsibilities:
Real-time scheduling
Management of HARQ (Hybrid Automatic Repeat Request)
Allocation of resources for users
Interfaces:
F1-C/F1-U with O-CU
Open Fronthaul (M-Plane and CUS-Plane) with O-RU
E2 interface with Near-RT RIC for real-time control
O-RU (Radio Unit)
The O-RU manages radio frequency (RF) processing and handles analog/digital signal conversion.
Functions include:
Digital front-end (DFE) processing
Transmission and reception of radio signals
Beamforming and antenna control
Interfaces:
Open Fronthaul CUS-Plane: Handles user and control traffic.
Open Fronthaul M-Plane: Manages configuration, monitoring, and synchronization.
- O-Cloud
The O-Cloud provides the virtualized infrastructure (compute, storage, and networking) necessary to run O-RAN components like O-CU, O-DU, and RIC.
Key features:
Supports cloud-native setups (containers, VMs)
Ensures hardware independence
Allows for scalability and adaptability
Key advantages include:
Vendor interoperability: Operators can smoothly deploy parts from various vendors.
Smart RAN control: Powered by RIC and AI/ML-driven optimizations.
Cost savings: Lower CAPEX and OPEX by using more affordable hardware.
Scalability and responsiveness: Cloud-native structures make dynamic scaling possible.
Accelerated innovation: Open interfaces let third-party developers come up with rApps and xApps for tailored use cases.
The Role of AI/ML in O-RAN
AI and ML are crucial for optimizing O-RAN.
Non-RT RIC: Trains and manages AI models using data from across the network.
Near-RT RIC: Uses those models for real-time RAN control (like managing interference and balancing loads).
This closed-loop intelligence lets the network self-optimize, enhancing user experiences and spectral efficiency.
Challenges in Implementing O-RAN
Even with its perks, operators face a few hurdles:
Complex integration due to various vendor systems
Interoperability testing for open interfaces
Security and compliance risks across vendors
Real-time performance optimization
Ongoing collaboration within the O-RAN Alliance and standardization efforts by 3GPP and ETSI are working to tackle these challenges.
Conclusion
The O-RAN architecture is reshaping how RANs are designed and operated by marrying openness, virtualization, and intelligence. The image above demonstrates how its modular elements — RIC, O-CU, O-DU, O-RU, and O-Cloud — interact through open interfaces like A1, E1, E2, and Open Fronthaul.
By decoupling software from hardware and integrating AI-driven automation, O-RAN paves the way for flexible, efficient, and future-ready 5G networks and beyond. It's a significant leap toward autonomous, programmable, and cost-effective telecom infrastructure — laying the groundwork for the next generation of wireless connectivity.
