Overall RAN Architecture in 5G: CU, DU, RU, MEC, and Controller Layer
The Radio Access Network (RAN) is essential in mobile networks, connecting User Equipment (UE) to the 5G Core (5GC) through the functions of gNB (Next-Generation Node B). In contrast to previous generations, 5G brings in a more adaptable, modular, and programmable RAN architecture that supports network slicing, lower latency services, and compatibility across different vendors.

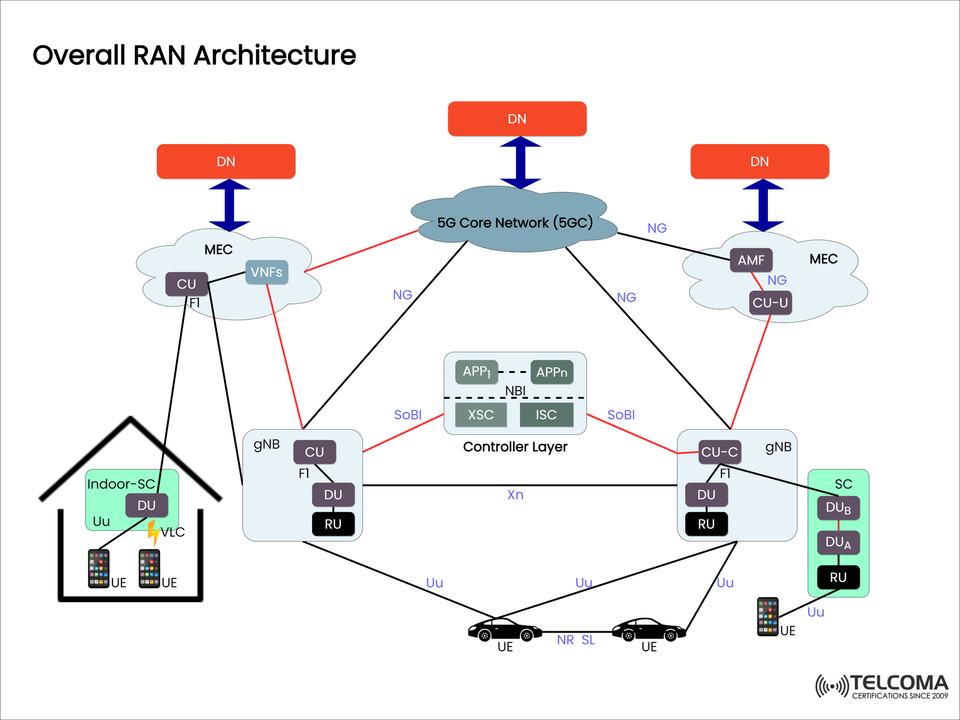

The diagram above illustrates the Overall RAN Architecture and shows how various components like the CU (Central Unit), DU (Distributed Unit), RU (Radio Unit), MEC (Multi-access Edge Computing), Controller Layer, and different interfaces come together to provide scalable and smart 5G services.
Key Components of the Overall RAN Architecture
The RAN is organized into different building blocks, each with specialized roles:
- User Equipment (UE)
This includes devices like smartphones, IoT sensors, AR/VR headsets, and connected cars.
They connect to the RAN using the Uu interface.
- gNB (Next-Generation Node B)
The gNB serves as the 5G counterpart to LTE’s eNodeB but is modular for added flexibility. It includes:
CU (Central Unit): Handles higher-layer processing such as RRC and PDCP.
DU (Distributed Unit): Manages real-time tasks like MAC, RLC, and scheduling.
RU (Radio Unit): Takes care of radio transmission and reception.
All these components connect through the F1 interface (CU–DU split).
- 5G Core Network (5GC)
Provides centralized functions including AMF (Access and Mobility Management Function).
Connects to gNB via: * N2 Interface: For control-plane signaling. * N3 Interface: For user-plane data forwarding.
- MEC (Multi-Access Edge Computing)
Places computing resources nearer to UE, which helps cut down latency.
Hosts Virtual Network Functions (VNFs) and supports real-time applications like AR/VR, IoT, and autonomous driving.
Connects with CU and DN (Data Network).
- Controller Layer
Provides RAN programmability and intelligence.
Includes: * XSC (Cross-Slice Controller): Manages multiple slices. * ISC (Intra-Slice Controller): Optimizes functions within a single slice. * Applications (APP1, APPn): Support specific tasks like load balancing, QoS optimization, and mobility management.
Uses SoBI (Southbound Interface) to interact with gNB and NBI (Northbound Interface) for connections to applications.
- Data Network (DN)
External networks such as the internet, enterprise networks, or cloud services.
Can be accessed via MEC or directly from the 5GC.
Interfaces in Overall RAN Architecture
Interfaces are crucial for connecting the various components:
Interface Connection Function Uu UE ↔ gNB Radio link between user devices and RANF1CU ↔ DU Splits high- and low-layer processing XngNB ↔ gNB Enables inter-gNB coordination and handoversN2gNB ↔ 5GCControl-plane signalingN3gNB ↔ 5GCUser-plane data transfer So BI gNB ↔ Controller Layer Enables programmability and control NBI Controller Layer ↔ Applications Northbound APIs for programmability NG gNB ↔ 5GC (AMF, DN)Supports signaling and data flows
Evolution from Traditional RAN to 5G RAN
Traditional RAN Characteristics:
Monolithic design combining baseband and radio functions.
Limited flexibility and vendor lock-in.
Scaling meant costly hardware upgrades.
5G RAN Characteristics:
Disaggregated CU/DU/RU model for improved scalability.
Cloud-native deployments utilizing VNFs and MEC.
Programmable through a controller and open APIs.
Network slicing support for various use cases.
Role of MEC in RAN
MEC brings cloud computing down to the network edge. Its role in RAN includes:
Hosting applications that are sensitive to latency closer to the UEs.
Reducing the load on the 5GC by offloading network traffic.
Running VNFs for traffic steering, caching, and real-time analytics.
Improving user experiences in gaming, autonomous driving, and industrial automation.
Controller Layer: Enabling RAN Programmability
The Controller Layer is key to making RAN programmable. It helps with:
Dynamic Resource Allocation: Adjusting spectrum and resources in real time.
Network Slicing Management: Making sure slices are isolated but also used efficiently.
Optimization Applications: APPs that leverage APIs for QoS, load balancing, or mobility updates.
Vendor Interoperability: Open NBIs allow solutions from different vendors to work together.
This change makes RAN an intelligent, software-driven ecosystem.
Use Case Scenarios of Overall RAN Architecture
- Smart Cities
Supports IoT sensors, surveillance, and connected vehicles.
The Controller Layer enables slice-specific optimization.
- Autonomous Vehicles
Needs ultra-reliable, low-latency communication (URLLC).
MEC ensures quick data processing at the edge.
- Industry 4.0
Robotic automation and smart factories rely on programmable RAN slices.
CU/DU split helps with scaling in dense deployments.
- Immersive Experiences (AR/VR)
High bandwidth and low latency needs supported by MEC + RAN programmability.
Benefits of Overall RAN Architecture
Flexibility – The disaggregated design allows for various deployment models.
Programmability – Features open APIs and controller integration.
Efficiency – Resource use is optimized through slicing and MEC.
Scalability – Accommodates massive IoT, eMBB, and URLLC applications.
Vendor Diversity – Encourages a multi-vendor ecosystem via standardized interfaces.
Challenges in Deploying Overall RAN Architecture
Even with its perks, there are challenges:
Standardization: Interfaces like SoBI and NBI need to comply with strict standards.
Security Risks: Open APIs can expose security vulnerabilities.
Integration Complexity: Making sure multiple vendors can work together can be tough.
Latency Concerns: The controller's overhead should not interfere with real-time services.
Comparison: Traditional vs. 5G Overall RAN
Aspect Traditional RAN5G Overall RAN Architecture Monolithic Disaggregated CU/DU/RUControlHardware-centricSoftware-definedScalabilityLimitedHighly scalable Programmability None Enabled via Controller Layer Deployment Centralized Supports edge + cloud deployments Use Cases Voice/data IoT, AR/VR, Industry 4.0, Smart Cities
Future of Overall RAN Architecture
In the future, RAN will evolve along with 6G and O-RAN principles:
AI/ML integration for proactive resource management.
Zero-touch automation for managing the entire lifecycle.
Cross-domain programmability will include satellite and NTN integration.
Better MEC-cloud synergy for global service management.
Conclusion
The Overall RAN Architecture in 5G marks a significant shift from rigid, hardware-focused systems to flexible, software-defined, and programmable networks. By combining the CU/DU/RU splits, MEC for edge intelligence, and the Controller Layer for programmability, 5G RAN lays the groundwork for the next wave of digital transformation.
This architecture ensures that telecom operators can efficiently support a range of services—IoT, AR/VR, autonomous driving, Industry 4.0—with scalability and intelligence.
