The Proposed 5G Wireless Network Security Architecture Explained
Proposed Security Architecture for 5G Wireless Networks
5G isn’t just about faster internet; it represents a major shift in how we connect. It’s designed for ultra-reliable, low-latency communications (URLLC), massive IoT (mIoT), and enhanced mobile broadband (eMBB). But, with these advancements come new hurdles—security being the top concern.

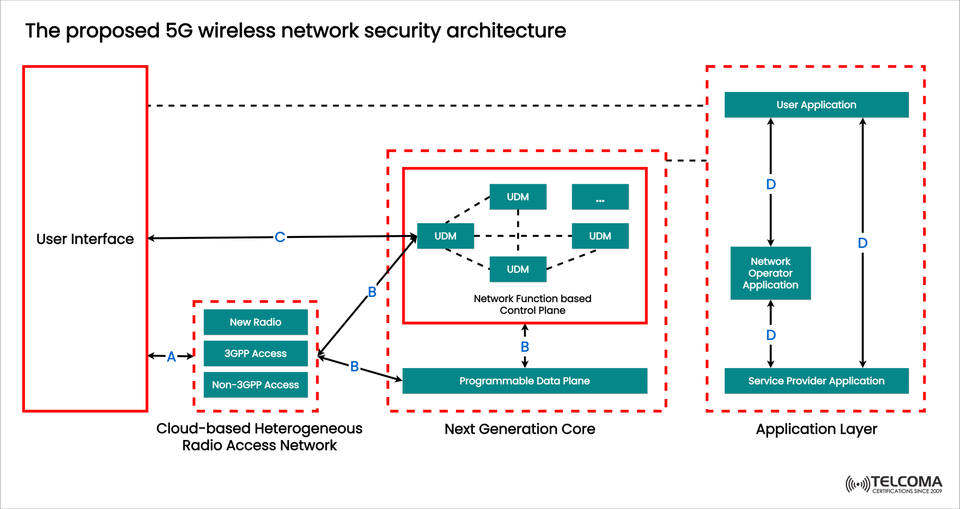

The diagram uploaded offers a look at a proposed security architecture for a 5G wireless network, breaking it down into three main areas:
Cloud-based Heterogeneous Radio Access Network (RAN)
Next Generation Core (NGC)
Application Layer
Each of these areas combines various security functions and interactions to protect users, operators, and service providers. Let’s dive deeper into this structure.
Cloud-based Heterogeneous Radio Access Network (RAN)
The RAN in 5G is both cloud-native and heterogeneous, which means it can work with different access technologies:
New Radio (NR): The air interface designed for 5G, offering super-fast speeds and minimal latency.
3GPP Access: Compatibility with older tech like LTE.
Non-3GPP Access: Works with Wi-Fi and other unlicensed spectrum technologies.
Security Functions at the RAN
Authentication & Encryption: Makes sure only authorized users and devices get onto the network.
Handover Security: Provides smooth transitions between different access technologies while keeping everything secure.
Access Control: Tells the difference between authorized and unauthorized devices at the network’s edge.
Key Interaction (A): The diagram indicates that the user interface connects to the RAN through secure channels, forming the first defense in this architecture.
Next Generation Core (NGC)
The Next Generation Core is the heart of the 5G system. It’s fully software-defined and virtualized, allowing for flexible setups and efficient resource management. This architecture is split into two planes:
- Network Function-Based Control Plane
At the core of the control plane is the Unified Data Management (UDM) function. The UDM takes care of subscriber identities, profiles, and authentication. In the diagram, several UDM instances communicate with each other, ensuring redundancy and scalability.
Subscriber Authentication: Confirms user credentials and helps prevent identity spoofing.
Policy Control: Puts rules in place for Quality of Service (QoS) and billing.
Inter-UDM Security: Guarantees that communication between distributed control nodes is secure.
- Programmable Data Plane
This layer manages the actual flow of data packets. In 5G, it's programmable, meaning operators can tailor it for specific uses like IoT, smart cities, or business networks.
Traffic Filtering & Prioritization: Allows for detailed control to block harmful traffic.
Network Slicing: Offers isolated logical networks, each with its own security policies.
Anomaly Detection: Spotting unusual traffic patterns that might signal cyber threats.
Key Interaction (B): The RAN connects securely with both the control and data planes, ensuring user data and signaling information are secure during transmission.
Application Layer
On top of the RAN and core is the Application Layer, where services for users and operators are found.
Components of the Application Layer
User Applications: Apps and services used directly by end-users (think video streaming, AR/VR, gaming).
Network Operator Applications: Tools that help operators manage network performance, reliability, and security.
Service Provider Applications: External providers offering additional services over the 5G infrastructure.
Security in the Application Layer
End-to-End Encryption: Safeguards user data from being intercepted.
Application Authentication: Ensures that only trusted applications can communicate with the core network.
Secure APIs: Encourages controlled communication between operator and service provider applications.
Key Interaction (D): The diagram shows secure communication between user, operator, and service provider applications. This ensures that every layer—going from infrastructure to services—is kept safe.
How the Layers Work Together
Here’s a simple breakdown of how the proposed 5G security architecture holds up:
Layer Main Role Security Functions RAN Provides access to the 5G network Authentication, encryption, handover protection Core Manages user sessions and traffic Subscriber management, policy enforcement, traffic monitoring Application Layer Delivers user and operator services End-to-end encryption, secure APIs, application-level authentication
This layered approach follows the defense-in-depth idea; if one layer gets compromised, the others are still there to protect the network and users.
Why This Architecture is Necessary
The unique traits of 5G—like a high density of devices, network slicing, and ultra-low latency—bring about new security risks. Traditional telecom security models simply can’t keep up with:
IoT Device Security: With billions of low-power devices, we need security protocols that are lightweight yet strong.
Virtualized Functions: As NFV (Network Function Virtualization) grows, attackers might target virtual instances instead of physical hardware.
Supply Chain Threats: Bringing in non-3GPP access points (like Wi-Fi) broadens the attack landscape.
This proposed architecture tackles these issues by baking security into every layer, not just at the edges.
Future Directions in 5G Security
While this proposed architecture is a solid base, folks in telecom should keep an eye on future developments, including:
AI-driven Threat Detection: Using machine learning to catch anomalies in real-time within the data plane.
Quantum-Resistant Cryptography: Getting ready for potential quantum computing challenges to encryption methods.
Zero Trust Architectures: Shifting towards a model where no device or service is automatically trusted, even within the network.
Edge Computing Security: Keeping data and functions safe that are deployed closer to the user at the network edge.
Conclusion
This proposed 5G wireless network security architecture pulls together a cloud-based RAN, a programmable next-gen core, and secure application layers into a unified defense system. By blending authentication, encryption, programmable traffic control, and protections at the application level, it aims to safeguard the future of 5G networks.
For those in telecom and tech enthusiasts alike, knowing this architecture is key. As 5G becomes essential for digital evolution—covering everything from smart cities to self-driving cars—the strength of its security will be crucial to its success.
