TOO Arrear Handover in LTE and 5G Networks: Causes, Process, and Optimization Strategies
TOO Arrear Handover in LTE and 5G Networks: Causes, Process, and Optimization
In LTE and 5G networks, keeping mobile users connected as they move between cells relies heavily on efficient handovers. But when the signal strength dips too low during a handover, a problem called TOO Arrear Handover can pop up.

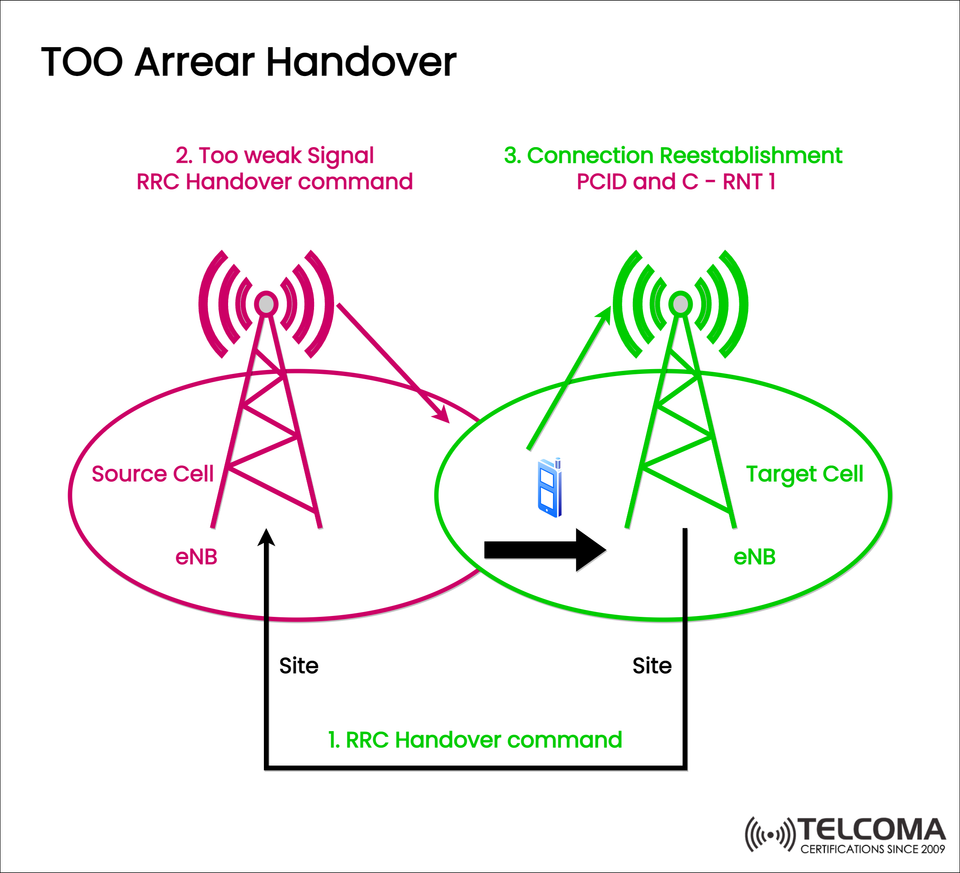

The diagram uploaded shows how this works:
First, the source cell sends out an RRC Handover Command.
Then, if the signal gets too weak, it can delay the handover.
Finally, the device must reconnect to the target cell using PCID and C-RNTI.
This article takes a thorough look at TOO Arrear Handover, going over how it happens, the signaling flow, and how to optimize networks to tackle this issue.
What is TOO Arrear Handover?
TOO Arrear Handover refers to a handover failure scenario where the UE (User Equipment) gets the handover command too late, specifically when the signal from the source cell has become too weak to finish the handover.
Instead of a smooth transition, the UE has to try and reestablish its connection with the target cell, which can lead to increased latency and even dropped sessions.
Why it Matters:
Leads to call drops or data interruptions.
Affects QoE (Quality of Experience) for users.
Causes signaling overhead from having to try reconnecting multiple times.
Handover Process in LTE/5G
To really grasp how TOO Arrear Handover happens, let’s have a quick recap of the standard handover process in LTE/5G:
Measurement Reporting * The UE sends neighboring cell signal strength info (RSRP, RSRQ, SINR) back to the source eNB (LTE) or gNB (5G).
Handover Decision * The source eNB/gNB picks the best target cell based on signal measurements and mobility conditions.
Handover Command * The source cell issues an RRC Handover Command for the UE to connect to the target cell.
Handover Execution * The UE disconnects from the source cell and syncs up with the target cell.
Completion * The target cell confirms the handover is complete back to the core network.
TOO Arrear Handover Signaling Flow
When it comes to TOO Arrear Handover, things don’t go as planned. The image outlines the signaling steps:
RRC Handover Command (Source Cell → UE) * The source cell kicks off the handover.
Too Weak Signal at Execution * The UE can’t keep in sync with the source, leading to the command not getting executed properly.
Connection Reestablishment with Target Cell * The UE starts RRC Reestablishment using Physical Cell ID (PCID) and C-RNTI (Cell Radio Network Temporary Identifier). Instead of a clean handover, it reconnects to the target cell but with a delay.
Causes of TOO Arrear Handover
A number of network issues can lead to this problem:
Late Handover Triggering * The source eNB/gNB takes too long to send out the handover command.
Incorrect Mobility Parameters * Bad tuning of the thresholds for handover, hysteresis, or Time-to-Trigger (TTT).
High UE Speed * Devices moving quickly (like in cars or trains) may exit the source cell range before the handover can be executed.
Interference and Weak Signal Quality * Even if the RSRP looks good, a poor SINR due to interference can cause the handover to fail.
Core/Backhaul Delays * Latency in signaling between the source and target areas can be an issue too.
- Impacts of TOO Arrear Handover
Dropped Calls * This is especially critical for VoLTE and VoNR (Voice over LTE/NR).
Session Interruptions * Data sessions freeze during the reconnection process.
Increased Signaling Load * Having to keep trying to reconnect puts pressure on network resources.
Negative User Experience * Users notice a drop in service quality, particularly during video calls or streaming.
Optimization Strategies
Operators have a few tricks up their sleeves to reduce TOO Arrear Handover:
a. Mobility Parameter Tuning
Tweak the Time-to-Trigger (TTT) for faster handover execution.
Fine-tune the handover margin and hysteresis to avoid late triggering.
b. Early Handover Triggering
Set thresholds to make sure handover commands go out before the UE hits weak coverage areas.
c. Speed-based Mobility Management
Different parameter sets should be used for low-speed versus high-speed users. For example, using shorter TTT values for people in vehicles.
d. Interference Management
Use features like Inter-Cell Interference Coordination (ICIC) and Coordinated Multi-Point (CoMP).
e. Load and Traffic Balancing
Make sure target cells have enough resources to quickly handle incoming handovers.
f. AI/ML-driven Predictive Handover
Implement AI-powered mobility prediction models to forecast UE movement and minimize reliance on reactive measurement-based decisions.
TOO Arrear Handover in LTE vs 5G
The concept applies to both LTE and 5G, but the effects vary:
Aspect LTE Networks5G NR Networks Voice Vo LTE call drops VoNR interruptions Latency Higher risk of delay Lower due to quicker core signaling Mobility Features Basic RRC-based HO Advanced beamforming & predictive HO Optimization Parameter tuning AI/ML and network slicing
In 5G, while beam-level mobility lessens some risks, TOO Arrear Handover is still a challenge, especially at high speeds.
Practical Use Cases
High-Speed Rail Mobility * Trains traveling over 300 km/h can often encounter TOO Arrear Handover if mobility settings aren’t optimized.
Dense Urban Networks * High interference and rapid cell-edge transitions heighten the risks.
Rural/Remote Deployments * Weak coverage zones make handovers more susceptible to delays.
Mission-Critical Services * In areas like remote surgery, autonomous driving, or industrial automation, delays during handover can’t be tolerated.
- Key Takeaways for Telecom Engineers
TOO Arrear Handover is a late-trigger handover failure that forces reconnection attempts.
It’s caused by parameter misconfiguration, interference, and high-speed movement.
Optimizations involve fine-tuning mobility parameters, reducing interference, and employing predictive AI models.
This issue affects both LTE and 5G networks, although 5G’s advanced features help mitigate some of the problems.
Conclusion
TOO Arrear Handover continues to be a significant hurdle for ensuring seamless mobility in LTE and 5G networks. While the typical handover process strives for uninterrupted connection, delayed triggers often mean that the UE has to revert to reestablishing connections.
By putting in place proactive mobility management, interference coordination, and AI-driven predictive solutions, operators can greatly lessen the chances of handover failures.
