The swift advancement of 5G networks brings innovative design strategies to meet the increasing need for scalability, ultra-low latency, and high-capacity connectivity. One of the standout innovations in 5G is the separation of the Control Plane (CP) and User Plane (UP) in the gNB (Next Generation NodeB).
The image shared illustrates various scenarios of CP-UP separation, emphasizing the blend of distributed and centralized entities to meet different deployment goals. This blog post takes a closer look at what CP-UP separation is, how it operates, the models for deployment, and its technical advantages.
What is CP-UP Separation in 5G?
In mobile networks, the Control Plane (CP) manages signaling, session control, and mobility, while the User Plane (UP) deals with actual user data traffic. Traditionally, both roles were housed in the same network node.
With 5G, CP-UP separation (CUPS) enables operators to divide these functions into distinct logical entities, allowing for flexible deployments, reduced latency, and better resource use.
CU-CP (Central Unit – Control Plane): In charge of signaling and mobility.
CU-UP (Central Unit – User Plane): Oversees user data transmission.
DU (Distributed Unit): Connects with radio resources that are closer to the end-users.
Why CP-UP Separation is Important
This separation provides:
Scalability: The ability to independently scale CP and UP functions.
Flexibility: Operators can position UP functions nearer to users to achieve lower latency.
Resource Efficiency: Enhances cloud and edge deployment strategies.
Service Differentiation: Enables simultaneous support for ultra-reliable low-latency communication (URLLC) and enhanced mobile broadband (eMBB).
CP-UP Separation Scenarios in 5G gNB

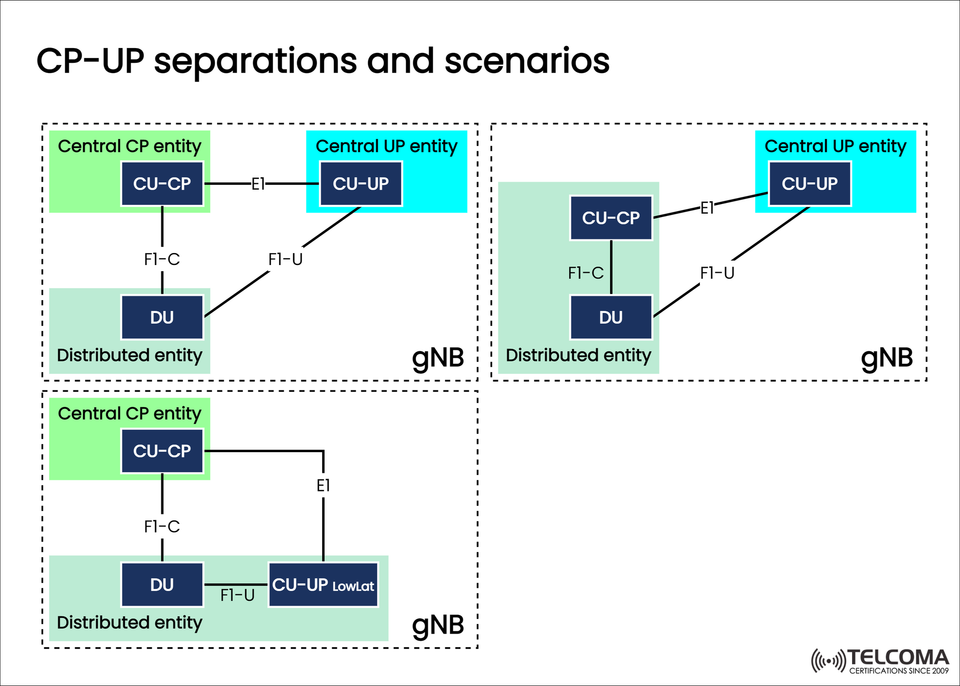

The diagram presents three key deployment scenarios. Let’s delve into them.
- Central CP with Central UP and Distributed DU
In this setup:
The CU-CP (Control Plane) is centralized.
The CU-UP (User Plane) is also centralized but remains distinct.
The DU (Distributed Unit) manages local radio tasks.
Interfaces: * F1-C connects CU-CP with DU. * F1-U links CU-UP with DU. * E1 connects CU-CP and CU-UP.
Use Case:
This arrangement works well for cloud-centric deployments, where both CP and UP are managed in centralized data centers, while the DU is positioned near the edge.
- Distributed CP with Central UP
In this model:
The CU-CP is part of the distributed unit, located closer to the DU.
The CU-UP remains centralized.
Interfaces: * F1-C connects CU-CP and DU locally. * E1 maintains communication with central CU-UP. * F1-U facilitates signaling for the user plane between DU and CU-UP.
Use Case:
This setup is perfect for areas requiring quick signaling response, like urban networks with high mobility needs, while still centralizing UP for overall efficiency.
- Low-Latency User Plane (CU-UP LowLat) at the Edge
This hybrid scenario caters to ultra-low latency services:
The CU-CP is centralized.
CU-UP LowLat is situated closer to the DU for applications needing tight timing.
Interfaces: * F1-C connects CU-CP and DU. * F1-U links DU with CU-UP LowLat. * E1 connects CU-CP with CU-UP LowLat.
Use Case:
Best suited for URLLC applications like self-driving cars, AR/VR experiences, and industrial automation, where even a few milliseconds of latency can make a difference.
Understanding Technical Interfaces
F1-C (Control): Manages signaling between DU and CU-CP.
F1-U (User Plane): Responsible for data transport between DU and CU-UP.
E1: Connects CU-CP and CU-UP for coordination and synchronization.
These interfaces ensure seamless cooperation, allowing distributed and centralized components to operate effectively as one gNB.
Advantages of CP-UP Separation in 5G
Latency Reduction: Positioning UP functions at the edge cuts down on data travel time.
Even Load Distribution: Independent scaling avoids bottlenecks.
Support for Network Slicing: Different network slices can have dedicated UP functions designed for particular QoS needs.
Resilience: If one part (CP or UP) fails, it doesn't affect the other.
Future-Proofing: Paves the way for transitions to cloud-native 6G frameworks.
Real-World Applications
Smart Cities: Distributed UP backs real-time video monitoring and traffic management.
Self-Driving Cars: Low-latency UP ensures collision prevention and vehicle-to-everything communication.
Industrial Automation: Edge deployments in factories cut down on downtime with instant reactions.
eMBB Services: Centralized UP scaling improves high-throughput video streaming.
Challenges in Implementation
Even though CP-UP separation has a lot of benefits, telecom operators need to think about:
Complexity: More interfaces lead to increased operational demands.
Synchronization Needs: Close coordination between CP and UP entities is essential.
Backhaul Needs: Low-latency UP requires a high-capacity backhaul setup.
Security Concerns: Multiple interfaces increase potential vulnerabilities.
Wrap Up
The split between Control Plane (CP) and User Plane (UP) in 5G gNB architecture marks a crucial change towards flexible, scalable, and service-focused networks. By accommodating various deployment scenarios—centralized, distributed, and low-latency edge—CUPS enables telecom companies to fine-tune their networks for a range of uses, from high-speed video to essential autonomous operations.
For tech enthusiasts, CP-UP separation illustrates that 5G is beyond just quicker mobile data; it's about smarter infrastructures. For telecom professionals, it underscores the operational tactics necessary for developing next-gen mobile networks.
As the industry looks toward cloud-native 6G, CP-UP separation will remain a key element, linking centralized intelligence with distributed agility.
