Understanding the Difference Between 5G RedCap Devices and Baseline NR Devices

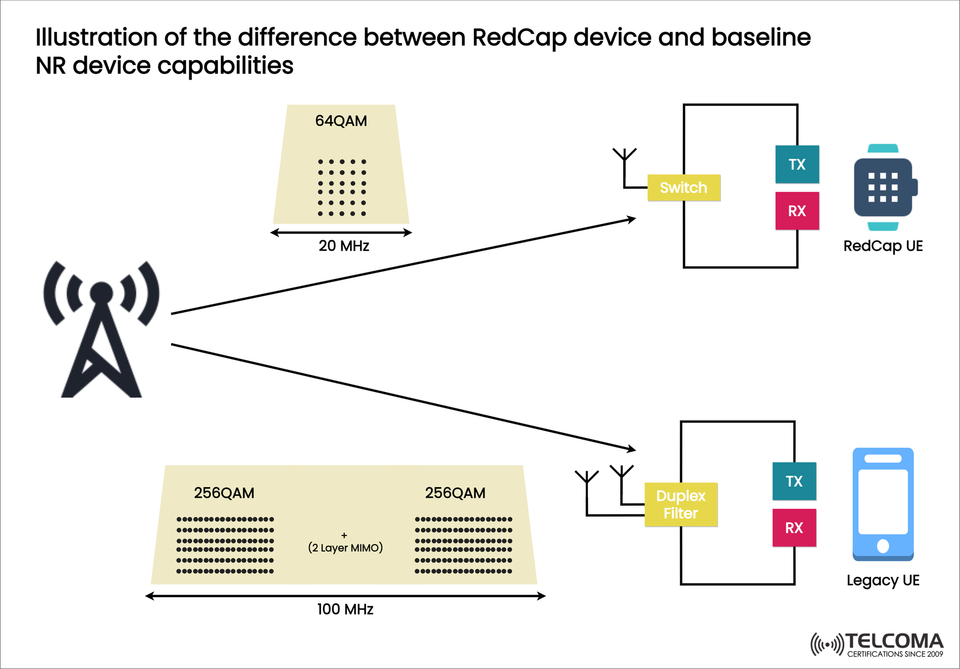

Illustration of the Difference Between RedCap and Baseline NR Device Capabilities
As 5G networks keep evolving, device diversity has become super important in the ecosystem. Not every 5G device needs to have ultra-high throughput or fancy multi-antenna MIMO setups. Some gadgets, like wearables or industrial sensors, really just need efficient, low-cost, and less-capable connectivity, while still reaping the benefits of 5G.
This is where 5G RedCap (Reduced Capability) devices come into play. The diagram uploaded shows the technical differences between RedCap UEs (User Equipment) and baseline NR (New Radio) devices, focusing on aspects like bandwidth, modulation, and antenna setup.
What is RedCap in 5G?
RedCap (Reduced Capability), rolled out in 3GPP Release 17, is meant for IoT and mid-range devices that want 5G connectivity without all the complexities of high-end smartphones.
It strikes a balance between performance and cost—providing lower data rates and simplified designs but still keeping essential 5G features like:
Low latency
Enhanced reliability
Network slicing compatibility
Advanced security features
RedCap is often dubbed as NR-Light, a name that hints at its “lightweight” version of 5G NR.
RedCap vs. Baseline NR Devices: A Technical Overview
The diagram points out two parallel paths for data transmission: one for RedCap UEs (think smartwatches or sensors) and another for baseline NR UEs (like smartphones).
Here’s a closer look at what they can do:
Feature | RedCap Device (NR-Light) | Baseline NR Device
Bandwidth | Up to 20 MHz | Up to 100 MHz (or more)
Modulation Scheme | 64QAM | 256QAM
MIMO Configuration | SISO or 1x1 MIMO | 2x2 MIMO (or higher)
RF Design | Single antenna with TX/RX switch | Dual antennas with duplex filters
Data Rate | Moderate throughput (~150 Mbps) | High throughput (multi-Gbps)
Power Consumption | Low (optimized for battery life) | Higher (designed for high performance)
Target Devices | Wearables, industrial sensors, cameras | Smartphones, laptops, high-end IoT
Complexity & Cost | Simplified and cost-efficient | Complex and expensive
Standard Release | 3GPP Release 17 | 3GPP Release 15/16
Bandwidth and Spectrum Utilization
One big difference shown in the image is bandwidth:
RedCap devices run on a narrow 20 MHz channel.
Baseline NR devices can use a wider 100 MHz or more, depending on the deployment (sub-6 GHz or mmWave).
Cutting back on bandwidth really simplifies the hardware, especially for RF front end and baseband processing.
Why it matters:
Using narrower bandwidth helps RedCap devices save power and lower signal processing needs, which is perfect for devices that send out small bursts of data rather than needing constant high-throughput streams.
- Modulation Scheme: 64QAM vs 256QAM
In the diagram:
RedCap UEs go with 64QAM (Quadrature Amplitude Modulation).
Baseline NR UEs use 256QAM, which packs more bits into each symbol.
Sure, 256QAM allows for faster data rates, but it requires better signal quality (higher SINR) and more advanced transceiver designs.
By using 64QAM, RedCap keeps hardware needs down and boosts power efficiency—again aligning perfectly with its goal of simplifying for low-cost IoT devices.
- MIMO and Antenna Configuration
Another big difference is the MIMO (Multiple Input Multiple Output) capability.
Baseline NR devices usually have 2-layer MIMO (or higher), as the image shows, supporting both transmit (TX) and receive (RX) antennas with duplex filters.
RedCap UEs, on the flip side, typically use a single antenna setup, switching between TX and RX.
This simplified design cuts down on costs and device size—making RedCap perfect for compact gadgets like wearables or industrial sensors.
Technical Insight:
MIMO boosts throughput and reliability by sending data across different paths. But it also ramps up antenna count, power usage, and RF complexity, which isn’t necessary for low-data IoT applications.
- Duplex Mechanism: Switch vs Duplex Filter
The image clearly lays out the duplexing mechanism differences between RedCap and baseline NR devices.
RedCap:
Uses a TX/RX switch, going back and forth between transmitting and receiving.
It’s simpler and cost-effective, but it can’t do simultaneous TX/RX.
Baseline NR Devices:
Use duplex filters that allow for simultaneous transmission and reception, which is great for FDD (Frequency Division Duplex) modes.
More complicated but necessary for high-speed, continuous data streams.
This shows the core trade-off between complexity and cost in how RedCap is designed.
Use Cases for 5G RedCap Devices
The arrival of RedCap fills the gap between high-end 5G devices and low-power LTE-M/NB-IoT devices.
Prominent Use Cases Include:
Industrial IoT (IIoT): Smart sensors, factory robots, predictive maintenance.
Consumer Electronics: Smartwatches, AR/VR accessories, fitness trackers.
Healthcare: Connected medical devices, wearables for patient monitoring.
Smart Cities: Cameras, environmental sensors, utility meters.
Public Safety: Reliable, low-latency communication for emergency responders.
These applications need moderate data rates, long battery life, and reliable networks—all things RedCap delivers efficiently.
Deployment Advantages for Operators
RedCap comes with some key benefits for network operators:
Efficient Spectrum Utilization: Lets you roll out low-power IoT without hogging wide bandwidths.
Simplified Device Management: A unified 5G network can handle both RedCap and baseline devices with ease.
Reduced Network Load: With lower throughput and signaling, congestion is eased.
Scalability: Supports tons of devices for industrial and consumer IoT ecosystems.
By adding RedCap, operators can broaden their service offerings to various device types without major infrastructure changes.
Future Enhancements in RedCap (3GPP Release 18 and Beyond)
While Release 17 set the stage, future releases are set to expand RedCap’s functionality. Here’s what to expect:
Uplink Power Class Extensions: Better range and reliability.
Enhanced Mobility Management: More support for moving devices.
Network Slicing Integration: Dedicated slices for RedCap IoT traffic.
Positioning Enhancements: Precise tracking for industrial automation and asset tracking.
These upgrades will make RedCap even more appealing for both enterprise and consumer 5G ecosystems.
Conclusion
The 5G RedCap device marks a strategic step forward in the 5G ecosystem—balancing simplicity, efficiency, and cost-effectiveness without losing key benefits of 5G.
As shown, RedCap achieves these optimizations by:
Running over narrower bandwidths (20 MHz)
Using simpler modulation (64QAM)
Skipping complex MIMO and duplexing hardware
When stacked against baseline NR devices, RedCap trades off peak performance for lower costs, power efficiency, and compact design, which makes it the perfect fit for IoT, wearables, and industrial applications.
Ultimately, RedCap serves as the bridge between LTE-M/NB-IoT and full-scale 5G, paving the way for a truly scalable and inclusive 5G ecosystem—one that connects not just people, but billions of smart devices all over the globe.
