Satellite communication has become crucial for global telecom, enabling services like TV broadcasting, GPS navigation, weather monitoring, military defense, and broadband internet. At the core of this system is the uplink and downlink process.

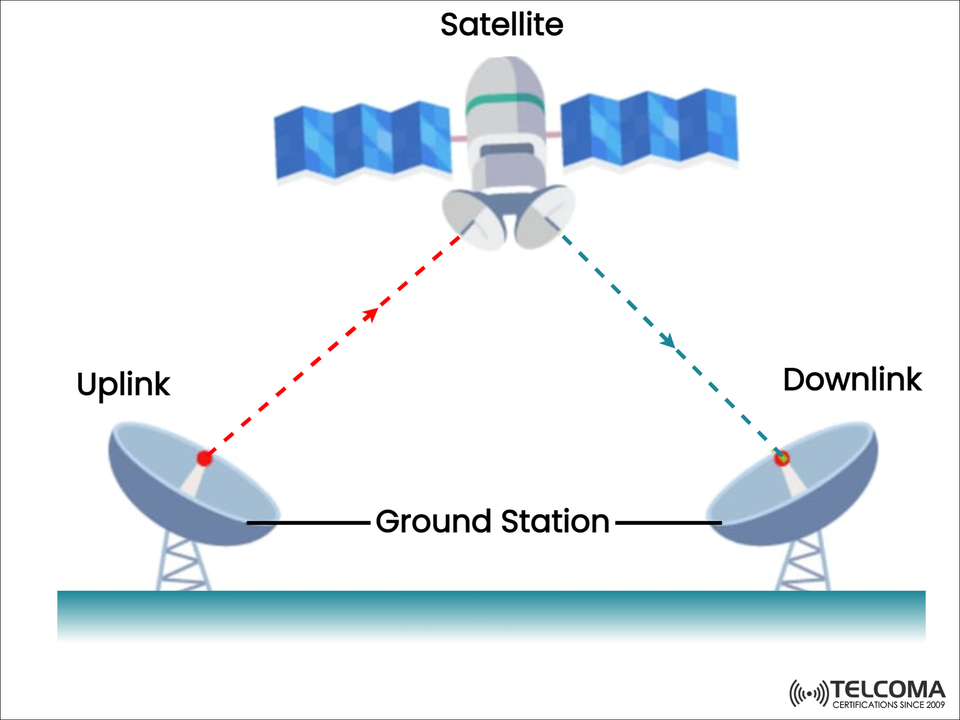

The uploaded image illustrates this clearly:

Uplink: Transmission from a ground station to a satellite.

Downlink: Transmission from the satellite back to Earth.

This piece takes a closer look at how uplink and downlink function, their technical parameters, and why they’re essential in today’s telecom landscape.

The uplink is all about sending signals from a ground station (or earth station) to a satellite.

Purpose: It’s for sending commands, data, or broadcast signals to the satellite.

Frequency Band: Typically falls within the 6 GHz to 31 GHz range, depending on the satellite type (C-band, Ku-band, Ka-band, etc.).

Power Requirement: Uplink signals need higher power because they have to travel long distances through the atmosphere to reach satellites in orbit.

Transmitting TV programs for rebroadcasting.

Sending internet data requests via satellite broadband.

Forwarding navigation system updates (like GPS).

Delivering military command signals securely.

The downlink is the opposite process where the satellite sends signals back down to Earth, usually to a receiving ground station or user terminal.

Purpose: It delivers broadcast signals, internet data, navigation coordinates, or remote sensing information.

Frequency Band: Operates at 4 GHz to 21 GHz (lower than uplink to keep atmospheric losses to a minimum).

Power Requirement: It uses lower power for transmission since ground antennas are very sensitive.

Delivering television and radio signals to homes.

Sending broadband data from satellite ISPs.

Broadcasting weather and climate information.

Transmitting military surveillance data.

Parameter Uplink (Ground → Satellite)Downlink (Satellite → Ground)Direction Earth to Satellite Satellite to Earth Frequency Range Higher (6–31 GHz)Lower (4–21 GHz)Power Requirement High Moderate/Low Main Applications Commands, Internet Requests, TV Uploads Broadcast, GPS, Internet Delivery Design Challenges Path loss, interference, alignment Atmospheric absorption, rain fade

Frequency Allocation in Satellite Communication

Making good use of frequency bands is key to minimize interference and maximize performance. Some popular bands include:

C-Band (4–8 GHz): Traditional band for broadcasting and telecom, less sensitive to rain fade.

Ku-Band (12–18 GHz): Commonly used for DTH (Direct-to-Home TV) and VSAT services.

Ka-Band (26–40 GHz): Great for high-speed broadband internet because it has a lot of bandwidth.

L and S Bands (1–4 GHz): Frequently used in mobile satellite services and navigation (like GPS).

By keeping uplink and downlink frequencies separate, we can avoid interference between the two paths, making everything run smoothly.

Ground Stations: The Gateway Between Earth and Space

Ground stations, or earth stations, play a vital role in uplink and downlink operations. They consist of:

Parabolic Dish Antennas: Large dishes that focus signals with high gain.

Transmitters & Amplifiers: They boost signals for uplink.

Low-Noise Block Converters (LNBs): Help amplify weak downlink signals.

Control Systems: Align antennas with satellites, especially those in geostationary orbits.

Without these ground stations, satellites wouldn’t be able to communicate with networks or users on Earth.

  1. Broadcasting

Satellite uplinks TV content, which is then rebroadcast via downlink to millions of homes around the world.

This makes global sports events, news, and entertainment possible.

  1. Satellite Internet

Customers send data requests (uplink) through VSAT terminals.

The data is processed and sent back (downlink), giving internet access even in remote locations.

  1. Navigation Systems (GPS, Galileo, GLONASS, BeiDou)

Uplink: Commands are sent to satellites to update their orbits.

Downlink: Satellites send precise location data to users.

  1. Defense and Security

Secure uplinks to send military commands.

Downlinks for transmitting surveillance imagery, intelligence, and real-time communication.

  1. Disaster Management

Uplink: Emergency coordination signals from affected regions.

Downlink: Updates of maps, rescue communications, and satellite images.

Even with tech advancing, we still face several challenges:

Atmospheric Attenuation: Signals can weaken due to rain fade, clouds, and ionospheric effects.

Interference: Signals can overlap with terrestrial or other satellite networks.

Latency: Especially for GEO satellites (about 36,000 km away), round-trip delays can hit 500–600 ms.

Power Limitations: Uplinking needs strong power, which can ramp up energy costs.

Alignment: Keeping ground antennas precisely pointed is crucial for maintaining connectivity.

With the rise of LEO constellations like Starlink, OneWeb, and Amazon Kuiper, the dynamics of uplink and downlink are changing:

Lower Latency: LEO satellites (around 500–1200 km) bring down delays considerably.

Phased-Array Antennas: These enable electronic beam steering for better connections between ground and satellites.

Higher Frequencies (V-band, W-band): Will allow for terabit-level satellite communication.

Integration with 5G and 6G: Satellites will complement terrestrial networks for global coverage.

Here’s a quick and easy overview of uplink and downlink in satellite communication for some fast studying and revision:

📡 Uplink (Ground to Satellite)

Direction: It goes from the earth station to the satellite.

Frequencies: These are on the higher end (6–31 GHz).

Power: This requires a lot of transmission power.

Purpose:

Sending commands to satellites

Uploading TV content

Making internet requests

Updating navigation systems

Challenges:

Atmospheric attenuation

Getting the antenna lined up just right

Higher energy costs

🛰️ Downlink (Satellite to Ground)

Direction: This one goes from the satellite to the earth station or user.

Frequencies: These are lower (4–21 GHz).

Power: It uses lower power since ground receivers are pretty sensitive.

Purpose:

Broadcasting TV and radio

Delivering internet data

Transmitting GPS and location signals

Sending satellite images and defense intel

Challenges:

Rain fade and signal loss

Interference with services on the ground

Limited spectrum resources

Conclusion

The simple diagram of uplink and downlink shows how satellite communication systems work. From ground stations sending commands (uplink) to satellites relaying information (downlink), this process helps ensure:

✅ Global connectivity for telecom services

✅ Seamless broadcasting of TV and radio

✅ Reliable navigation and defense operations

✅ Internet access for remote and rural areas

As the world moves towards next-gen networks (5G, 6G) and LEO satellites, uplink and downlink will keep evolving—becoming faster, more efficient, and more woven into our everyday lives.
