OTDOA-Based Positioning in 5G NR: How Time Difference Locates Devices Accurately
Understanding OTDOA Positioning in 5G NR
With the arrival of 5G NR (New Radio), getting accurate positioning has become crucial—this goes beyond just helping people find their way but also includes applications like IoT devices, self-driving cars, and automation in various industries. A significant technique that's been standardized in 3GPP Release 15 and beyond for 5G positioning is OTDOA, which stands for Observed Time Difference of Arrival.

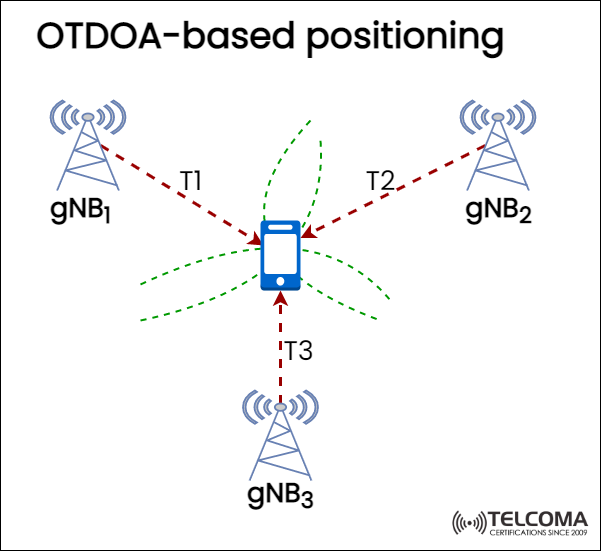

The image uploaded by Telcoma illustrates this idea well: a mobile device (UE) picks up signals from several gNodeBs (base stations) at different times. By looking at the time differences (T1, T2, T3) of these signals, the network can work out exactly where the device is located.
Let’s dive deeper into how OTDOA functions, its significance, and how 5G takes it to the next level compared to LTE.
What is OTDOA?
OTDOA (Observed Time Difference of Arrival) is a network-based positioning method that's utilized in both LTE and 5G NR setups. It figures out where a user equipment (UE) is by measuring the time differences in the arrival of reference signals sent by at least three synchronized base stations (gNodeBs).
To break it down:
Each gNodeB sends out a Positioning Reference Signal (PRS).
The UE notes the timing differences when these signals come in.
These differences translate into distance differences between the UE and each gNodeB.
By applying geometric calculations (hyperbolic positioning), the network pinpoints the UE’s location.
Understanding the Diagram: How OTDOA Functions
In the diagram:
The central device represents the User Equipment (UE).
The three towers labeled gNB1, gNB2, and gNB3 stand for 5G base stations.
Dashed red lines marked T1, T2, and T3 indicate the signal paths from each gNodeB to the UE.
The time differences between these signals are what help compute the UE’s position.
Every gNodeB sends PRS (Positioning Reference Signals) at precisely synchronized intervals. The UE measures:
T2−T1: the time difference between gNB2 and gNB1
T3−T1: the time difference between gNB3 and gNB1
Using these measurements, the UE (or the network) figures out hyperbolic lines of position—the UE's precise location is where these hyperbolas intersect.
OTDOA in 5G vs. LTE
OTDOA made its debut with LTE, but 5G NR significantly boosts its capabilities with improvements in signal design, bandwidth, and synchronization.
Feature LTE OTDOA5G NR OTDOA Reference Signal PRS (Positioning Reference Signal)NR-PRS (New Radio PRS)Bandwidth Up to 20 MHz Up to 100 MHz (Sub-6 GHz), 400 MHz (mmWave)Accuracy50–150 meters< 3 meters (in ideal conditions)Synchronization GPS-based between eNodeBs Tight phase sync using PTP or GNSS Support Frequency BandsSub-6 GHz onlySub-6 GHz + mmWave Use Cases Navigation, emergency Industry 4.0, IoT, V2X, autonomous systems
With 5G’s large bandwidth and low latency, OTDOA can achieve sub-meter accuracy in ideal scenarios.
Main Components of OTDOA
To really grasp OTDOA, it’s important to look at its key components.
a. Positioning Reference Signals (PRS)
Specially designed downlink signals sent out periodically by gNodeBs.
Carry known patterns that help the UE accurately gauge Time of Arrival (ToA).
Spread across frequency and time to keep interference at bay.
b. Reference Signal Time Difference (RSTD)
This is the main measurement in OTDOA.
It’s defined as: RSTD=ToAsecondary_cell−ToAreference_cell
Every RSTD measurement signifies a hyperbola representing potential UE locations.
c. Location Management Function (LMF)
A crucial network component in 5G Core (5GC) that manages position calculations and location management.
It gets RSTD reports from the UE and figures out the final coordinates.
d. Assistance Data
This is sent from the network to the UE via LPP (LTE Positioning Protocol) or NRPPa (New Radio Positioning Protocol A).
It contains details about PRS setups, gNodeB locations, and timing adjustments.
OTDOA Positioning Process: A Step-by-Step Overview
Deliver Assistance Data * The network provides assistance data to the UE, detailing which gNodeBs are sending PRS and their timing.
PRS Transmission * Neighboring gNodeBs deliver PRS signals in synchronized time slots.
Measure ToA * The UE tracks the arrival times of each PRS.
Calculate RSTD * The UE computes the Observed Time Differences between its reference and neighboring gNodeBs.
Report to Network * The UE transmits the RSTD values to the network (LMF).
Position Calculation * The network utilizes hyperbolic triangulation using known gNodeB coordinates to pinpoint the UE’s location.
The Math Behind OTDOA
If we denote:
t_i: Time of arrival from gNB_i
c: Speed of light
Then, the distance difference between gNB_i and gNB_j is:
Δd_{ij}=c×(t_i−t_j)
This creates a hyperbola which represents all the possible locations for the UE. When you have three or more gNodeBs, the intersection of multiple hyperbolas reveals the UE’s precise coordinates (x,y).
Advantages of OTDOA Positioning
✅ Network-based — No GPS needed; works indoors and in challenging environments.
✅ High accuracy thanks to wideband 5G signals.
✅ Energy-efficient for the UE (passive measurements).
✅ Supports emergency and regulatory services (E911, AML).
✅ Easy integration with other positioning methods (like GNSS, Wi-Fi RTT, and uplink TDOA).
Challenges with OTDOA Implementation
Even with its benefits, OTDOA has some technical hurdles:
Multipath propagation: Reflected signals can lead to timing inaccuracies.
Synchronization needs: All gNodeBs have to be tightly synchronized in time.
Interference between cells: PRS signals from adjacent cells might overlap, complicating the measurements.
Device challenges: UEs need to be able to measure time with sub-nanosecond precision.
To tackle these issues, 3GPP Release 16 and 17 brought in improvements like:
Muting patterns to cut down on PRS transmission interference.
Adaptive PRS configuration for different positioning scenarios.
Combining OTDOA with other techniques (like angle-based or uplink-based methods).
Hybrid Positioning with OTDOA
5G networks often merge OTDOA with other positioning methodologies for better reliability:
GNSS + OTDOA for smooth transitions between outdoor and indoor.
UL-TDOA (Uplink TDOA) where the network gauges uplink signal arrival times.
Angle of Arrival (AoA) and Angle of Departure (AoD) for better spatial precision.
Fallback based on Cell ID when PRS isn’t available.
This mixed approach can offer centimeter-level accuracy, particularly in Industry 4.0, robotics, and vehicle tracking.
Applications and Use Cases
a. Emergency Services (E911 / AML)
OTDOA helps networks locate callers even when GPS isn't an option (like when they’re inside buildings).
b. Industrial IoT
Enables asset tracking, autonomous robots, and safety monitoring within factories and warehouses.
c. Smart Cities
Improves location-based services such as traffic management, public transport coordination, and environmental monitoring.
d. Vehicle-to-Everything (V2X)
Facilitates real-time positioning for connected and autonomous vehicles, enhancing safety and navigation accuracy.
OTDOA in 5G mmWave and Beyond
At mmWave frequencies (24–100 GHz), the broad bandwidths lead to improved time resolution, resulting in more accurate position estimates. However, due to significant path loss and blockages, coordinated efforts among multiple gNodeBs and beamforming-based positioning become essential.
Future 6G systems could further refine OTDOA by integrating AI-assisted signal processing and reconfigurable intelligent surfaces (RIS) to enhance localization.
Conclusion
OTDOA-based positioning continues to be one of the most dependable and standardized methods for network-based location determination in 5G NR. By utilizing precise timing measurements from Positioning Reference Signals across multiple synchronized gNodeBs, it achieves high-accuracy localization, even where GPS struggles.
With ongoing upgrades in 3GPP Release 16 and 17, OTDOA is set to be crucial for mission-critical applications, smart manufacturing, autonomous systems, and the future of positioning in 6G.
